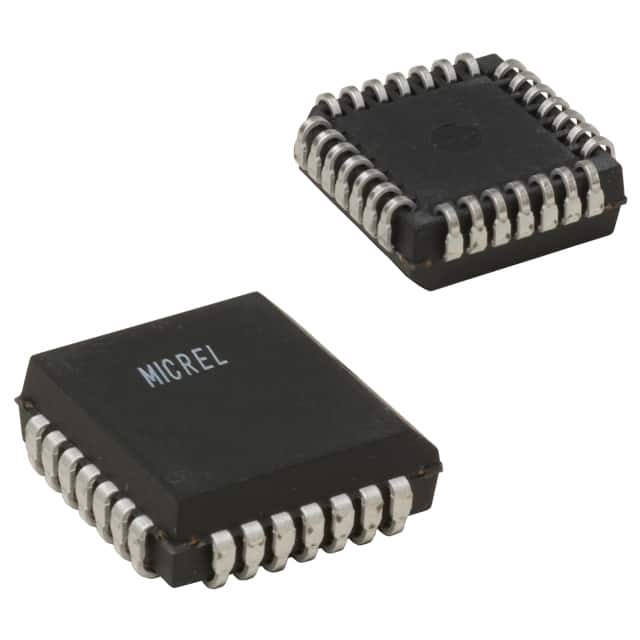

SY100E452JY
IC FF D-TYPE SNGL 5BIT 28PLCCManufacturer: Microchip Technology
Categories: Flip Flops
Quality Control: Learn More
Microchip Technology SY100E452JY, a single 5-bit D-type flip-flop from the 100E series, is engineered for high-speed logic applications. This device features positive edge triggering and a master reset function. Operating with a supply voltage range of -4.2V to -5.5V, the SY100E452JY supports clock frequencies up to 1.4 GHz. The output type is complementary, and it is housed in a 28-PLCC (J-Lead) surface-mount package. Its typical quiescent current (Iq) is 89 mA, and it operates within an ambient temperature range of -40°C to 85°C. This component is suitable for use in telecommunications, computing, and high-performance digital systems.
Additional Information
Series: 100ERoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-LCC (J-Lead) |
| Output Type | Complementary |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Function | Master Reset |
| Type | D-Type |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | -4.2V ~ -5.5V |
| Current - Quiescent (Iq) | 89 mA |
| Current - Output High, Low | - |
| Trigger Type | Positive Edge |
| Clock Frequency | 1.4 GHz |
| Supplier Device Package | 28-PLCC (11.48x11.48) |
| Max Propagation Delay @ V, Max CL | - |
| Number of Bits per Element | 5 |
