CD4093BK
IC GATE NAND 4CH 2-INP 14CFPManufacturer: Harris Corporation
Categories: Gates and Inverters
Quality Control: Learn More
NAND Gate IC 4 Channel Schmitt Trigger 14-CFP
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Schmitt Trigger |
| Packaging | Bulk |

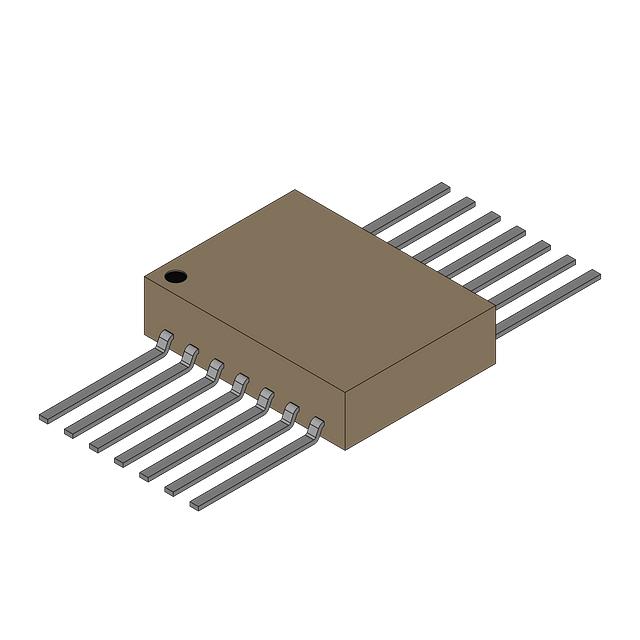

| Package / Case | 14-CFlatpack |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 3V ~ 18V |
| Current - Output High, Low | 6.8mA, 6.8mA |
| Number of Inputs | 2 |
| Supplier Device Package | 14-CFP |
| Input Logic Level - High | 3.6V ~ 12.7V |
| Input Logic Level - Low | 2.8V ~ 9.6V |
| Max Propagation Delay @ V, Max CL | 130ns @ 15V, 50pF |
| Number of Circuits | 4 |
| Current - Quiescent (Max) | 20 µA |
Request a Quote
