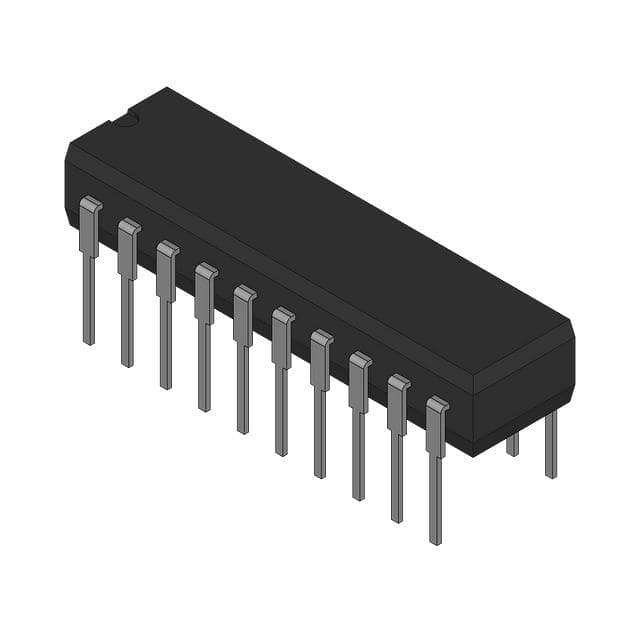

CD54HC541F
IC BUFFER NON-INVERT 6V 20CDIPManufacturer: Harris Corporation
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Buffer, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-CDIP
Additional Information
Series: 54HCRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-CDIP (0.300"", 7.62mm) |
| Output Type | 3-State |
| Mounting Type | Through Hole |
| Number of Elements | 1 |
| Logic Type | Buffer, Non-Inverting |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 2V ~ 6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Supplier Device Package | 20-CDIP |
Request a Quote
