PI4ULS5V104GAEX
IC TRANSLTR BIDIRECTIONAL 12CSPManufacturer: Diodes Incorporated
Categories: Translators, Level Shifters
Quality Control: Learn More

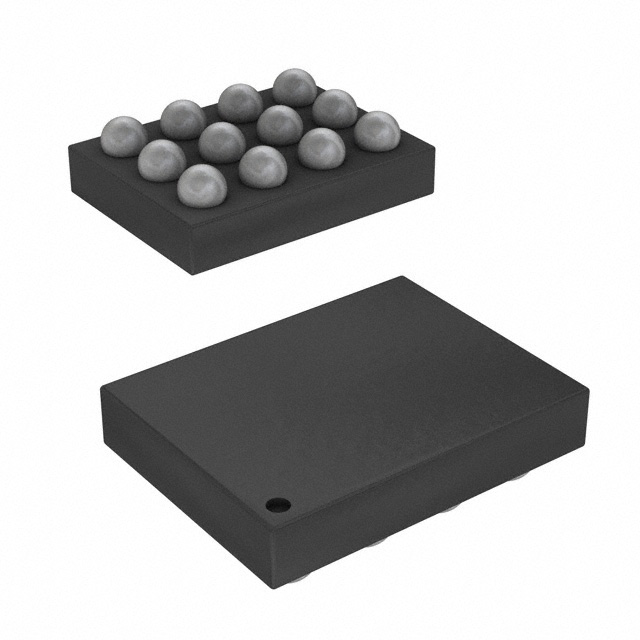

Diodes Incorporated PI4ULS5V104GAEX is a single-circuit, 4-channel bidirectional voltage level translator from the ULS series. This component supports a data rate of 100Mbps and features auto-direction sensing for simplified integration. The translator operates with VCCA ranging from 1.2V to 3.6V and VCCB from 1.65V to 5.5V. Output types include Tri-State and Non-Inverted signals. Packaged in a compact 12-CSP (1.37x1.87) format, this surface-mount device is supplied on tape and reel. The PI4ULS5V104GAEX is suitable for applications in consumer electronics and industrial automation where efficient voltage translation between different logic levels is critical. It is designed for operation within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: ULSRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Auto-Direction Sensing |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFBGA, CSPBGA |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 100Mbps |
| Supplier Device Package | 12-CSP (1.37x1.87) |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 4 |
| Voltage - VCCA | 1.2 V ~ 3.6 V |
| Voltage - VCCB | 1.65 V ~ 5.5 V |
| Input Signal | - |
| Number of Circuits | 1 |
