74LVC2G38RA3-7
IC GATE NAND 2CH 4-INP DFN1210-8Manufacturer: Diodes Incorporated
Categories: Gates and Inverters
Quality Control: Learn More

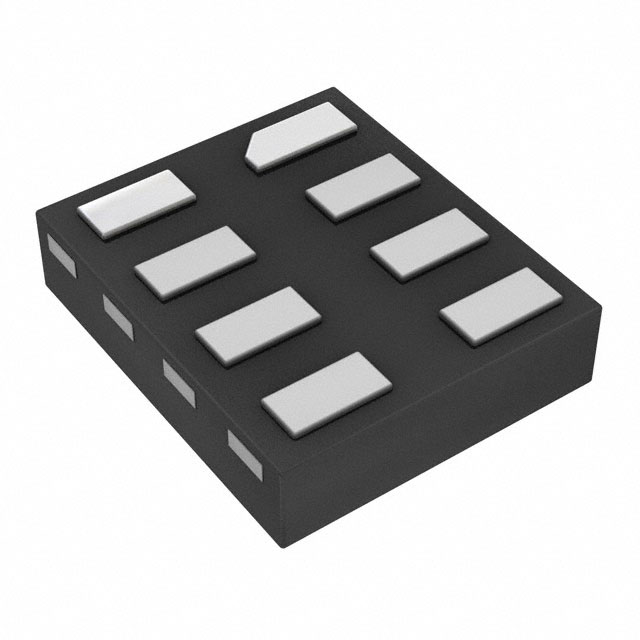

NAND Gate IC 2 Channel Open Drain X2-DFN1210-8
Additional Information
Series: 74LVCRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Open Drain |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-XFDFN |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Output High, Low | -, 32mA |
| Number of Inputs | 4 |
| Supplier Device Package | X2-DFN1210-8 |
| Input Logic Level - High | - |
| Input Logic Level - Low | 0.1V ~ 0.8V |
| Max Propagation Delay @ V, Max CL | 3.3ns @ 3.3V, 50pF |
| Number of Circuits | 2 |
| Current - Quiescent (Max) | 10 µA |
