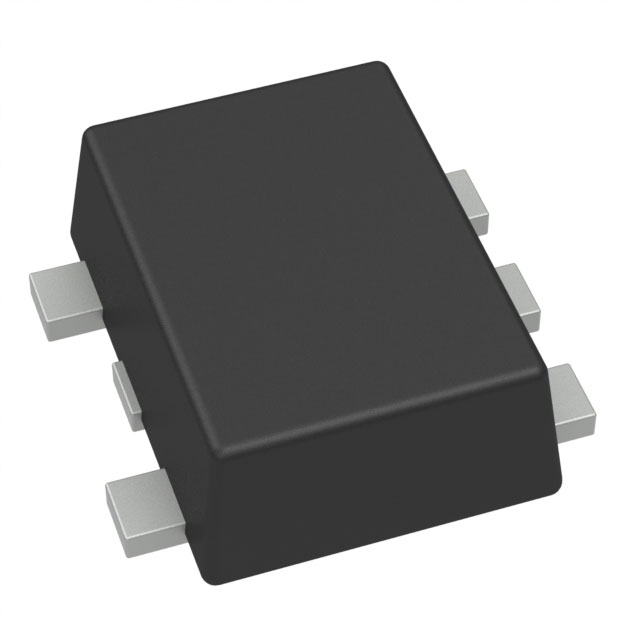

74LVC1G00Z-7
IC GATE NAND 1CH 2-INP SOT553Manufacturer: Diodes Incorporated
Categories: Gates and Inverters
Quality Control: Learn More
NAND Gate IC 1 Channel SOT-553
Additional Information
Series: 74LVCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-553 |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Output High, Low | 32mA, 32mA |
| Number of Inputs | 2 |
| Supplier Device Package | SOT-553 |
| Input Logic Level - High | 1.7V ~ 2V |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Max Propagation Delay @ V, Max CL | 1.8ns @ 5V, 50pF |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 200 µA |
