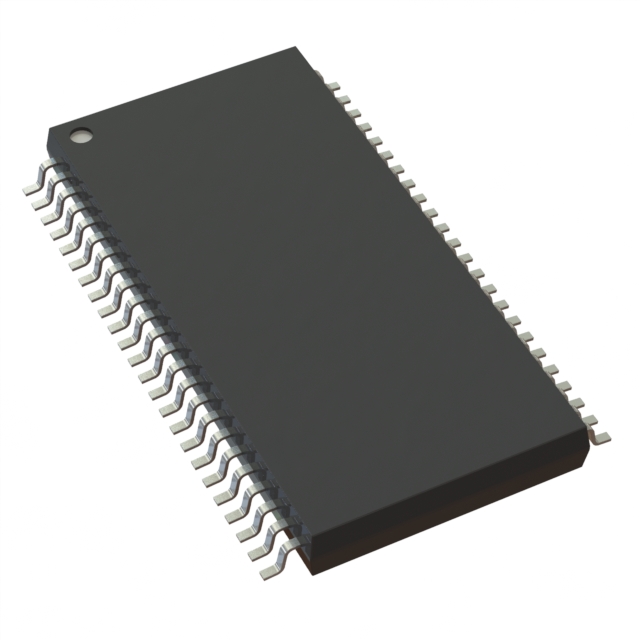

PI74VCX16241AE
IC BUF NON-INVERT 3.6V 48TSSOPManufacturer: Diodes Incorporated
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
The Diodes Incorporated PI74VCX16241AE is a 74VCX series, 16-bit dual-supply bus buffer with 3-state outputs. This non-inverting buffer features four independent 4-bit buffers, each with a 3-state output. Operating across a supply voltage range of 1.8V to 3.6V, it supports dual-supply translation with VCC and VCCA up to 3.6V. The device offers a high drive capability with 24mA output current at both high and low levels. Its 48-TSSOP package is suitable for surface mounting. Applications for this component include consumer electronics, industrial control systems, and telecommunications infrastructure. The PI74VCX16241AE provides robust performance for high-speed bus buffering requirements.
Additional Information
Series: 74VCXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 48-TFSOP (0.240"", 6.10mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Logic Type | Buffer, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.8V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 4 |
| Current - Output High, Low | 24mA, 24mA |
| Supplier Device Package | 48-TSSOP |
