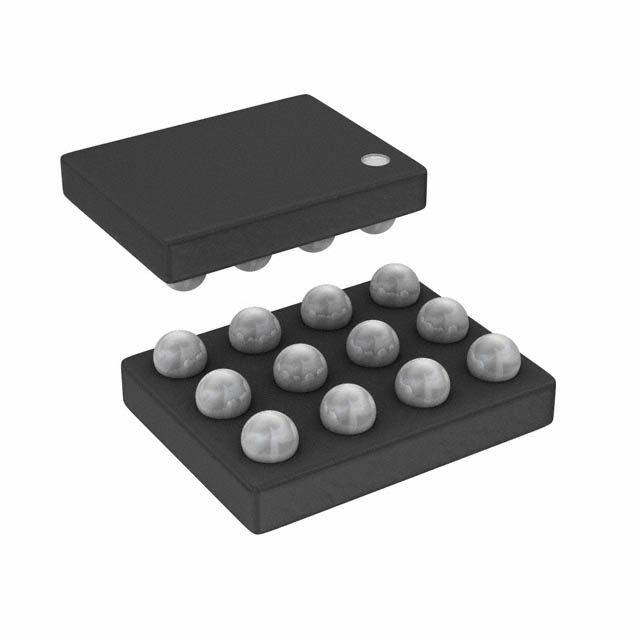

ADG3304BCBZ-REEL
IC TRNSLTR BIDIRECTIONAL 12WLCSPManufacturer: Analog Devices Inc.
Categories: Translators, Level Shifters
Quality Control: Learn More
Analog Devices Inc. ADG3304BCBZ-REEL is a single-circuit, quad-channel, bidirectional voltage level translator. This device supports a 50 Mbps data rate and features auto-direction sensing for seamless signal translation. It operates across a VCCA range of 1.15 V to 5.5 V and a VCCB range of 1.65 V to 5.5 V. The translator is housed in a compact 12-WLCSP (2.01x1.61) package, suitable for surface-mount applications. Its output type is Tri-State, Non-Inverted. This component finds application in various industries including consumer electronics, industrial automation, and telecommunications where interfacing between different voltage domains is critical. The ADG3304BCBZ-REEL is supplied on a tape and reel for efficient automated assembly.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto-Direction Sensing |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFBGA, WLCSP |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 50Mbps |
| Supplier Device Package | 12-WLCSP (2.01x1.61) |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 4 |
| Voltage - VCCA | 1.15 V ~ 5.5 V |
| Voltage - VCCB | 1.65 V ~ 5.5 V |
| Input Signal | - |
| Number of Circuits | 1 |
