AD8158XCPZ
IC MUX/DEMUX QUAD 2X1 100LFCSPManufacturer: Analog Devices Inc.
Categories: Signal Switches, Multiplexers, Decoders
Quality Control: Learn More

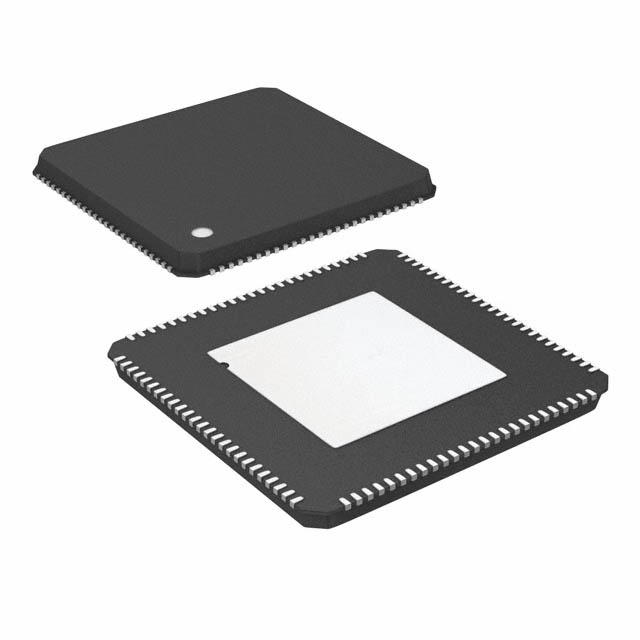

Analog Devices Inc. AD8158XCPZ is a quad 2x1 multiplexer/demultiplexer designed for high-performance signal routing applications. This component, housed in a 100-lead LFCSP_VQ package with a 12mm x 12mm footprint, offers robust signal integrity for demanding designs. The AD8158XCPZ is suitable for use in broadcast video, medical imaging, and industrial automation systems where precise signal switching is critical. Its architecture facilitates efficient signal path management in complex electronic systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Circuit | - |
| Type | - |
| Operating Temperature | - |
| Voltage - Supply | - |
| Current - Output High, Low | - |
| Voltage Supply Source | - |
| Supplier Device Package | 100-LFCSP-VQ (12x12) |
Request a Quote
