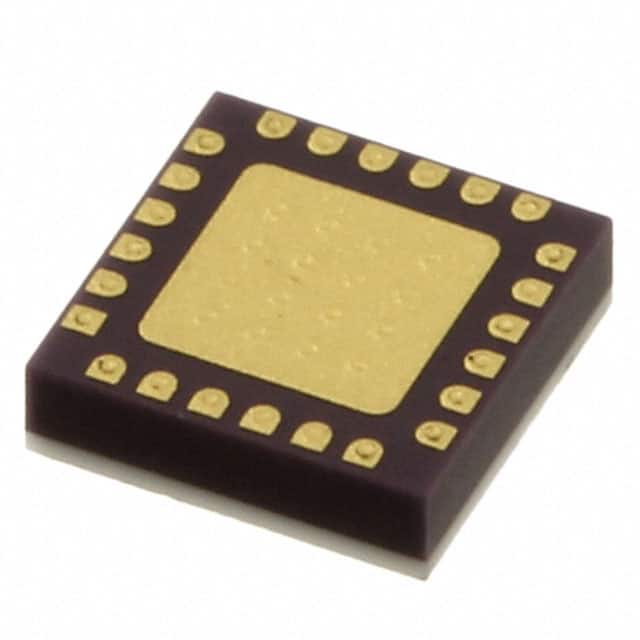

HMC844LC4B
IC XOR/XNOR 45GBPS PROGR 24QFNManufacturer: Analog Devices Inc.
Categories: Gates and Inverters - Multi-Function, Configurable
Quality Control: Learn More
Analog Devices Inc. HMC844LC4B is a configurable XOR/XNOR gate featuring a single circuit with four inputs. This electronic component operates within a -40°C to 70°C temperature range and requires a supply voltage between -3.13V and -3.47V. The output is available in differential and single-ended configurations. Packaged in a 24-QFN (4x4) with an exposed pad, the HMC844LC4B is designed for surface mounting. This device is suitable for high-speed digital applications within the telecommunications and data communications industries, offering flexible logic implementation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-TFQFN Exposed Pad |
| Output Type | Differential, Single-Ended |
| Mounting Type | Surface Mount |
| Logic Type | XOR/XNOR Gate |
| Operating Temperature | -40°C ~ 70°C |
| Voltage - Supply | -3.13V ~ -3.47V |
| Current - Output High, Low | - |
| Number of Inputs | 4 |
| Schmitt Trigger Input | No |
| Supplier Device Package | 24-QFN (4x4) |
| Number of Circuits | 1 |
