HMC841LC4BTR-R5
IC FF D-TYPE SNGL 1BIT 24SMTManufacturer: Analog Devices Inc.
Categories: Flip Flops
Quality Control: Learn More
Analog Devices Inc. HMC841LC4BTR-R5 is a single D-type flip-flop with complementary outputs, designed for high-speed digital applications. This component operates with a clock frequency of up to 43 GHz, making it suitable for demanding telecommunications, test and measurement, and radar systems. The device features a 1-bit element with positive and negative edge triggering. It is housed in a 24-lead QFN (4x4) package with an exposed pad for enhanced thermal management, and is supplied on tape and reel. The operating temperature range is -40°C to 70°C (TA). The supply voltage range for this component is -3.13V to -3.47V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TFQFN Exposed Pad |
| Output Type | Complementary |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Function | Standard |
| Type | D-Type |
| Operating Temperature | -40°C ~ 70°C (TA) |
| Voltage - Supply | -3.13V ~ -3.47V |
| Current - Output High, Low | - |
| Trigger Type | Positive, Negative |
| Clock Frequency | 43 GHz |
| Supplier Device Package | 24-QFN (4x4) |
| Max Propagation Delay @ V, Max CL | - |
| Number of Bits per Element | 1 |
Request a Quote
Clients Also Buy
HMC853LC3CTR
IC FF D-TYPE SNGL 1BIT 16CSMT

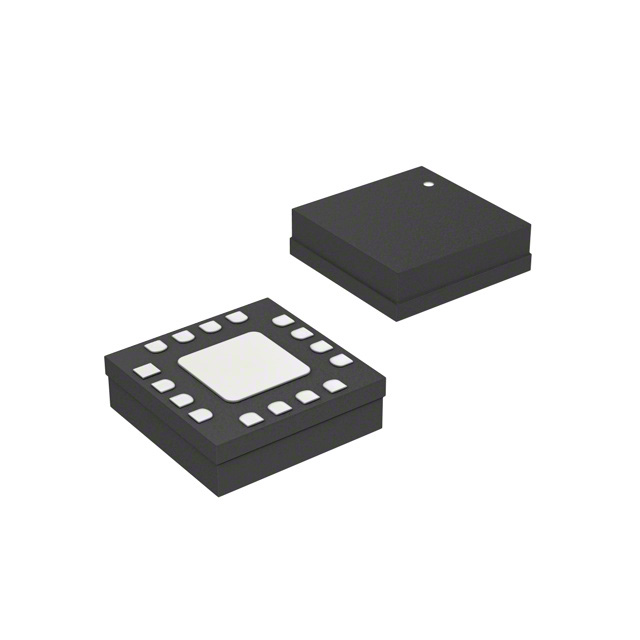

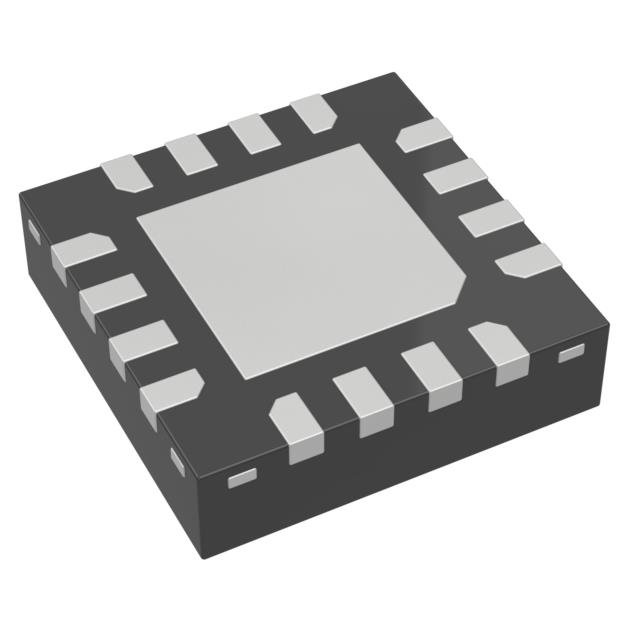

HMC723LP3ETR
