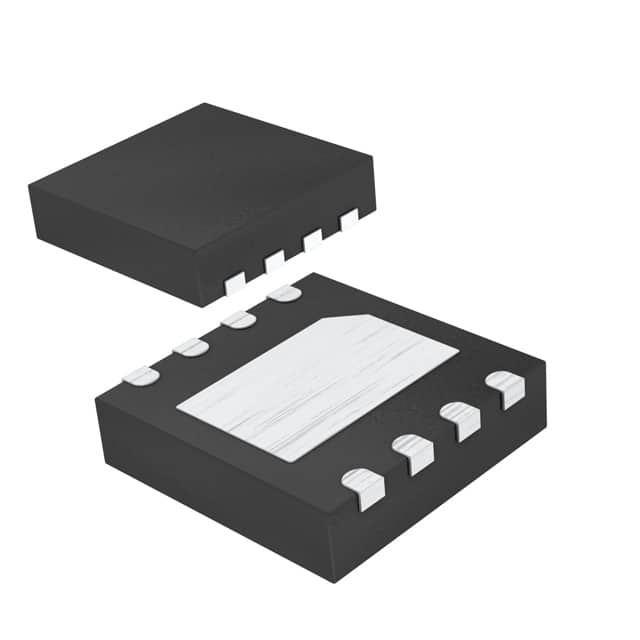

MAX3394EETA+
IC TRANSLTR BIDIRECTIONAL 8TDFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Translators, Level Shifters
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX3394EETA- is a single-circuit, bidirectional voltage level translator featuring two channels. This component operates with VCCA ranging from 1.2V to 5.5V and VCCB from 1.65V to 5.5V, facilitating level translation between diverse voltage domains. It supports a data rate of up to 6Mbps, making it suitable for applications requiring efficient signal conversion. The device is housed in an 8-TDFN (3x3) surface-mount package, designed for optimized thermal performance with an exposed pad and an operating temperature range of -40°C to 85°C. This translator is commonly employed in industrial automation, consumer electronics, and communication systems where voltage level compatibility is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 8-WDFN Exposed Pad |
| Output Type | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 6Mbps |
| Supplier Device Package | 8-TDFN (3x3) |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 2 |
| Voltage - VCCA | 1.2 V ~ 5.5 V |
| Voltage - VCCB | 1.65 V ~ 5.5 V |
| Input Signal | - |
| Number of Circuits | 1 |
