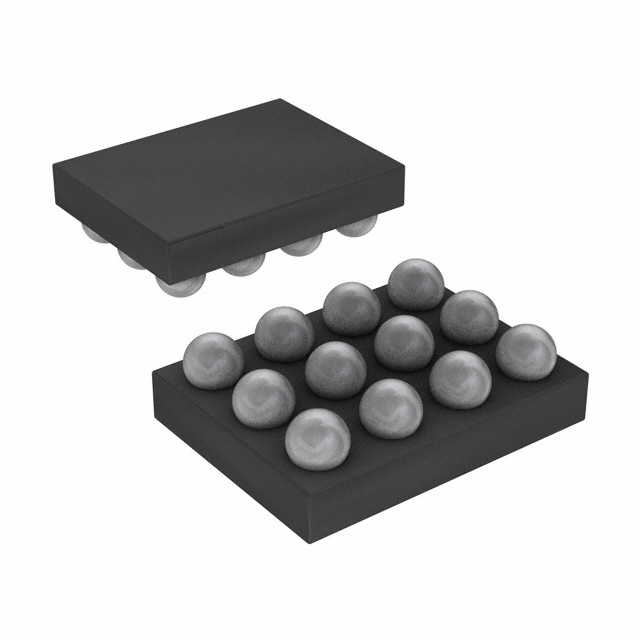

MAX3378EEBC+T
IC TRANSLTR BIDIRECTIONAL 12UCSPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Translators, Level Shifters
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX3378EEBC-T is a single-circuit, 4-channel, bidirectional voltage level translator. This UCSP packaged component supports data rates up to 16Mbps and features open-drain and tri-state outputs. It operates across a wide VCCA range of 1.2V to 5.5V and VCCB range of 1.65V to 5.5V, making it suitable for diverse voltage translation requirements. Integrated features include power supply decoupling and thermal-shutdown protection for enhanced reliability. The MAX3378EEBC-T is commonly employed in applications such as mobile devices, networking equipment, and industrial control systems. It is supplied in a 12-UCSP package on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Power Supply Decoupling, Thermal-Shutdown Protection |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFBGA, CSPBGA |
| Output Type | Open Drain, Tri-State |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 16Mbps |
| Supplier Device Package | 12-UCSP |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 4 |
| Voltage - VCCA | 1.2 V ~ 5.5 V |
| Voltage - VCCB | 1.65 V ~ 5.5 V |
| Input Signal | - |
| Number of Circuits | 1 |
