MAX3013ETP+T
IC TRANSLTR BIDIRECTIONAL 20TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Translators, Level Shifters
Quality Control: Learn More

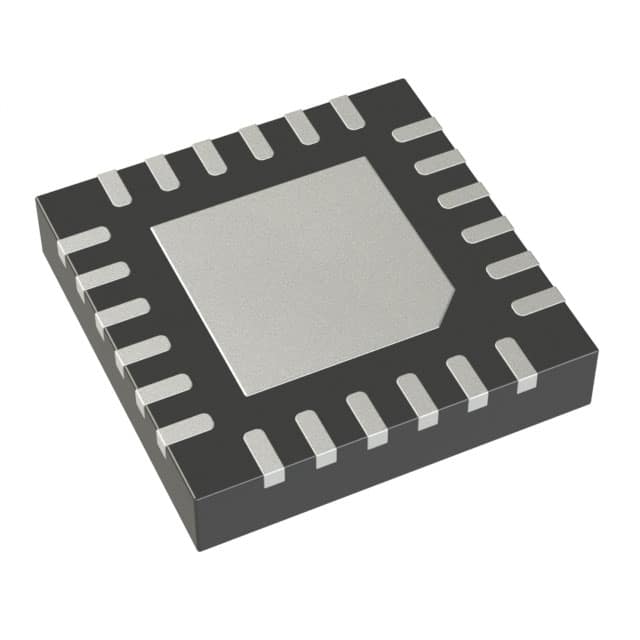

Analog Devices Inc./Maxim Integrated MAX3013ETP-T is a single-circuit, 8-channel bidirectional voltage level translator. This component facilitates seamless data communication between logic systems operating at different voltage levels, supporting VCCA from 1.2V to 3.6V and VCCB from 1.65V to 3.6V. With a data rate capability of 100Mbps, it is suitable for high-speed applications. The MAX3013ETP-T features tri-state, non-inverted outputs and includes power supply decoupling for enhanced signal integrity. Packaged in a compact 20-TQFN (5x5) with an exposed pad, it is designed for surface mount installation. This translator finds application in diverse industries including consumer electronics, industrial automation, and telecommunications where voltage domain interfacing is critical. The component operates within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Power Supply Decoupling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WQFN Exposed Pad |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 100Mbps |
| Supplier Device Package | 20-TQFN (5x5) |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 8 |
| Voltage - VCCA | 1.2 V ~ 3.6 V |
| Voltage - VCCB | 1.65 V ~ 3.6 V |
| Input Signal | - |
| Number of Circuits | 1 |
