MAX3013EBP+T
IC TRANSLTR BIDIRECTIONAL 20WLPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Translators, Level Shifters
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX3013EBP-T is a single-circuit, 8-channel bidirectional voltage level translator designed for high-speed data transmission. This device operates with VCCA ranging from 1.2V to 3.6V and VCCB from 1.65V to 3.6V, supporting a data rate of 100Mbps. The translator features tri-state, non-inverted outputs and includes power supply decoupling for enhanced performance. Packaged in a 20-WLP (20-WFBGA) format and supplied on tape and reel, it is suitable for surface mount applications. The MAX3013EBP-T is utilized in applications requiring seamless signal level interfacing between different voltage domains, commonly found in consumer electronics and communication systems. Its operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Power Supply Decoupling |
| Packaging | Tape & Reel (TR) |

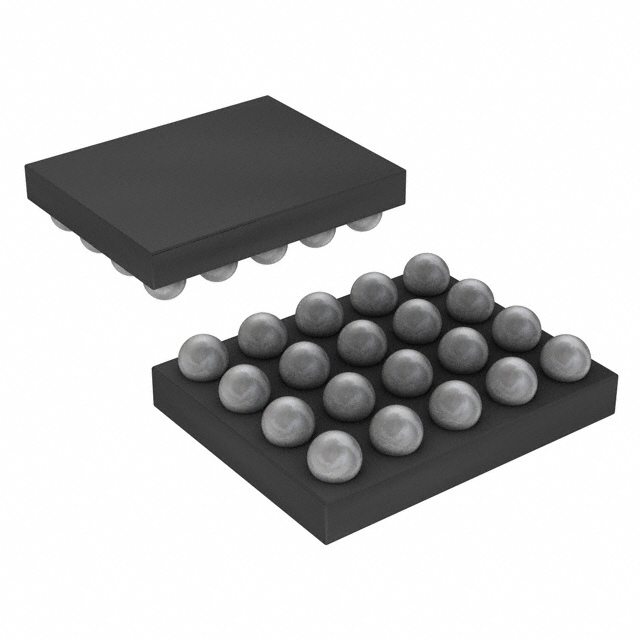

| Package / Case | 20-WFBGA |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 100Mbps |
| Supplier Device Package | 20-WLP |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 8 |
| Voltage - VCCA | 1.2 V ~ 3.6 V |
| Voltage - VCCB | 1.65 V ~ 3.6 V |
| Input Signal | - |
| Number of Circuits | 1 |
