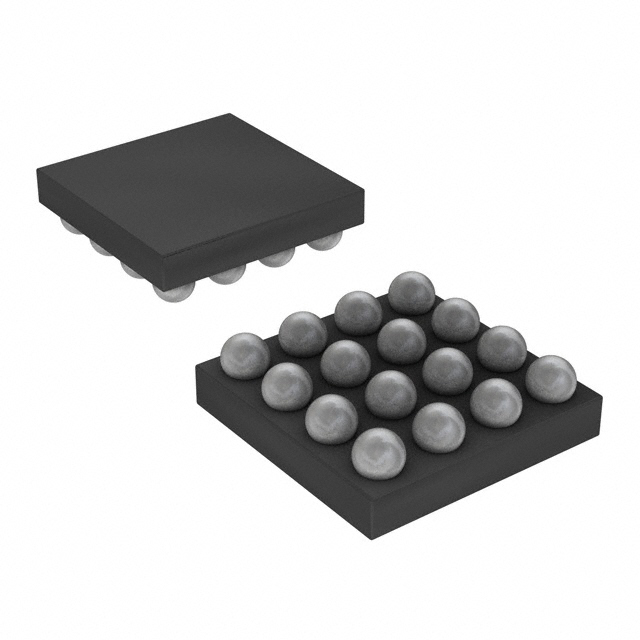

MAX13032EEBE+T
IC TRANSLTR BIDIRECTIONAL 16UCSPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Translators, Level Shifters
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX13032EEBE-T is a single-circuit, 6-channel bidirectional voltage level translator. This UCSP packaged component supports data rates up to 100Mbps and features flexible voltage supply ranges with VCCA from 1.62V to 3.2V and VCCB from 2.2V to 3.6V. The device offers both open-drain and push-pull output types, facilitating seamless interfacing between logic families. Its compact 16-UCSP (2x2) form factor, suitable for surface mounting, makes it ideal for space-constrained applications. This translator is commonly employed in automotive, industrial automation, and consumer electronics for signal integrity and voltage domain translation. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Power Supply Decoupling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFBGA, CSPBGA |
| Output Type | Open Drain, Push-Pull |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 100Mbps |
| Supplier Device Package | 16-UCSP (2x2) |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 6 |
| Voltage - VCCA | 1.62 V ~ 3.2 V |
| Voltage - VCCB | 2.2 V ~ 3.6 V |
| Input Signal | - |
| Number of Circuits | 1 |
