Kintex UltraScale+ is a family of Field-Programmable Gate Arrays (FPGAs) developed by Xilinx, a leading provider of programmable logic devices. Kintex UltraScale+ FPGAs are designed to deliver high-performance computing with low power consumption, making them ideal for multiple applications such as aerospace, defense, automotive, and communications.

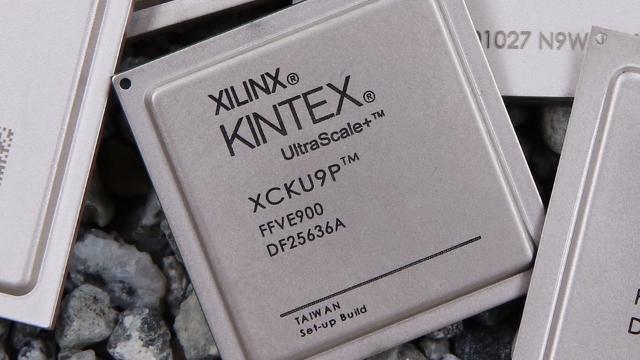

Kintex UltraScale+ (Image Source: Xilinx)
Key Features
The Kintex UltraScale+ family of FPGAs offers several key features that make them stand out from other FPGAs in the market. Let’s take a closer look at these features:
High-Performance Computing: The Kintex UltraScale+ FPGAs are designed to deliver high-performance computing with speeds of up to 1.2GHz. This makes them ideal for applications that require real-time processing and low latency. The FPGAs achieve this high performance through a combination of advanced process technology and architectural innovations, such as using multiple processing engines and dedicated hardware for specific functions.
Low Power Consumption: One of the most significant advantages of Kintex UltraScale+ FPGAs is their low power consumption. The FPGAs in this family have been designed to operate at low power levels, with power consumption ranging from 15W to 50W. This makes them ideal for applications where power efficiency is critical, such as in mobile devices and IoT applications. The FPGAs achieve this low power consumption through a combination of advanced process technology, power management techniques, and architectural innovations, such as power-efficient processing engines and dynamic power management.
Large Capacity: The Kintex UltraScale+ FPGAs come in various sizes, with capacities ranging from 170K to 1.8M logic cells. This makes them suitable for multiple applications, from small-scale projects to large-scale industrial applications. The FPGAs achieve this large capacity through advanced process technology, architectural innovations, and packaging techniques.
Flexible I/O Configurations: The FPGAs in this family feature flexible I/O configurations, with up to 1,248 I/O pins available. This allows developers to customize their I/O configurations based on their specific requirements. The FPGAs achieve this flexible I/O configuration through a combination of architectural innovations, packaging techniques, and software tools that simplify the design and implementation of custom I/O configurations.
Architecture
The Kintex UltraScale+ FPGAs are based on the UltraScale+ architecture, a new generation of FPGA architecture developed by Xilinx. This architecture is designed to deliver high performance and low power consumption, and it offers several key features, including:
16nm FinFET Technology: The UltraScale+ architecture is built on a 16nm FinFET process technology, which enables high transistor density and low power consumption. FinFET is a type of transistor technology that uses a fin-shaped channel to improve control over the flow of electrons. This technology allows for higher transistor density, more processing power, and better power efficiency.
Heterogeneous 3D System Integration: The architecture features a heterogeneous 3D system integration, allowing multiple technologies to be integrated on a single chip. This results in higher performance and lower power consumption. Heterogeneous 3D system integration allows for integrating different processing engines, memory technologies, and I/O interfaces on a single chip. This enables more efficient communication and data transfer between various components, resulting in faster and more power-efficient processing.
UltraRAM: The UltraScale+ architecture features UltraRAM, a new type of memory technology developed by Xilinx. UltraRAM offers high-density, high-performance memory that is optimized for FPGA applications. It offers up to 432Mb of memory, with a bandwidth of up to 500Gb/s. UltraRAM is optimized for high-bandwidth applications, such as video processing and data center applications.
High-Bandwidth Memory: The UltraScale+ architecture also features High-Bandwidth Memory (HBM), a new type of memory technology offering high bandwidth and low power consumption. HBM is designed to work with other memory technologies, such as DDR4, to provide a high-performance memory subsystem. HBM offers up to 8GB of memory, with a bandwidth of up to 512Gb/s.
Multi-Processing Engines: The architecture features multiple processing engines, including Arm Cortex-A53 processors, programmable logic, and DSP engines. These processing engines work together to provide high-performance computing with low power consumption. The Arm Cortex-A53 processors are based on a 64-bit architecture and offer high-performance processing. At the same time, the programmable logic and DSP engines provide flexible processing capabilities that can be customized based on the application’s specific requirements.
- Industrial: Kintex UltraScale+ FPGAs are also well-suited for industrial applications, where high reliability, ruggedness, and low power consumption are critical factors. These FPGAs can be used in control systems, motor drives, and robotics, as well as in power generation and distribution systems. In industrial applications, Kintex UltraScale+ FPGAs can provide the high-speed processing and high-bandwidth communication required for real-time control and monitoring while offering flexibility to adapt to changing requirements and conditions. Additionally, these FPGAs can operate in harsh environments, withstanding extreme temperatures, shock, vibration, and electromagnetic interference, making them ideal for use in industrial settings.
Exploring the Capabilities and Applications of Kintex UltraScale+ FPGAs
Kintex UltraScale+ FPGAs come with a wide range of features and specifications that make them an attractive choice for a variety of applications. Some of the key features and specifications of Kintex UltraScale+ FPGAs include:
- 16nm FinFET technology
- Up to 1.2 million logic cells
- Up to 5,520 DSP slices
- Up to 56Mb of BRAM
- Up to 432Mb of UltraRAM
- Up to 8GB of High-Bandwidth Memory (HBM)
- Up to 4,272 user I/Os
- Multiple processing engines, including Arm Cortex-A53 processors, programmable logic, and DSP engines
- Support for PCIe Gen3 and Gen4
- High-speed transceivers with data rates up to 32.75 Gbps
- Low-power operation with dynamic power reduction and advanced clock gating
- Support for multiple power domains and voltage levels
- Enhanced security features, including AES-256 encryption and secure boot
- Robust toolchain, including the Vivado Design Suite and the Vitis Unified Software Platform
These features and specifications make Kintex UltraScale+ FPGAs a versatile and powerful solution for a wide range of applications, from aerospace and defense to data center and industrial applications.
Applications
The Kintex UltraScale+ FPGAs are designed for a wide range of applications, including aerospace and defense, automotive, communications, and data center applications:
Aerospace and Defense: Kintex UltraScale+ FPGAs are ideal for aerospace and defense applications, where high performance and low power consumption are critical. These FPGAs can be used in radar and imaging systems, electronic warfare, and avionics systems.
Automotive: Kintex UltraScale+ FPGAs are also well-suited for automotive applications, where high performance and low power consumption are important factors. These FPGAs can be used in Advanced Driver Assistance Systems (ADAS), infotainment systems, and vehicle-to-vehicle communication systems.
Communications: Kintex UltraScale+ FPGAs are critical for communications applications with high bandwidth and low power consumption. These FPGAs can be used in wireless base stations, optical networking equipment, and high-speed switches.
Data Center: Kintex UltraScale+ FPGAs are well-suited for data center applications, where high performance and low power consumption are essential. These FPGAs can be used in acceleration and co-processing applications, such as machine learning and artificial intelligence, as well as in networking and storage applications.
Conclusion
Kintex UltraScale+ FPGAs is a powerful and versatile solution for many applications. These FPGAs offer high-performance computing with low power consumption, large capacity, and flexible I/O configurations. They are based on the UltraScale+ architecture, which offers several key features, including 16nm FinFET technology, heterogeneous 3D system integration, UltraRAM, High-Bandwidth Memory, and multiple processing engines. With their advanced capabilities and wide range of applications, Kintex UltraScale+ FPGAs will play an essential role in the future of computing and technology.
