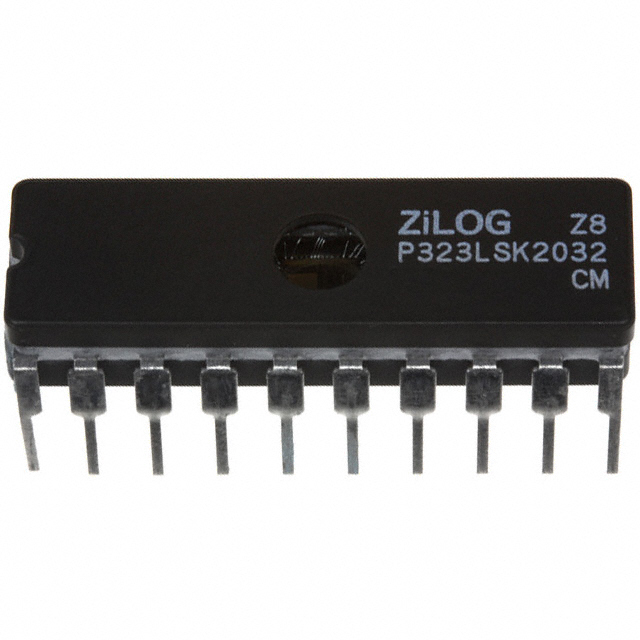

ZGP323LSK2032E
IC MCU 8BIT 32KB OTP 20DIPManufacturer: Zilog
Categories: Microcontrollers
Quality Control: Learn More
The Zilog Z8® GP™ microcontroller, part number ZGP323LSK2032E, is an 8-bit device featuring a 32KB One-Time Programmable (OTP) program memory and 237 x 8 bytes of RAM. Operating at up to 8MHz with an internal oscillator, this component offers 16 I/O pins and includes peripherals such as High-Voltage Detection (HLVD), Power-On Reset (POR), and Watchdog Timer (WDT). It is housed in a 20-pin DIP package, designed for through-hole mounting, and operates within a temperature range of 0°C to 70°C. The supply voltage range is 2V to 3.6V. This microcontroller is suitable for applications in industrial control and consumer electronics.
Additional Information
Series: Z8® GP™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-CDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Speed | 8MHz |
| Program Memory Size | 32KB (32K x 8) |
| RAM Size | 237 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | Z8 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Connectivity | - |
| Peripherals | HLVD, POR, WDT |
| Number of I/O | 16 |
| Programmable | Not Verified |
