Z8F2480PH020SG
IC MCU 8BIT 24KB FLASH 20DIPManufacturer: Zilog
Categories: Microcontrollers
Quality Control: Learn More
Zilog eZ8 Encore!® XP® microcontroller, part number Z8F2480PH020SG, is an 8-bit 20MHz device featuring 24KB of FLASH program memory and 3KB of RAM. This component offers a robust set of peripherals including Brown-out Detect/Reset, LVD, POR, PWM, and WDT, alongside an internal oscillator and a 7-channel 10-bit A/D converter. Connectivity options are extensive, supporting I2C, IrDA, LINbus, and UART/USART protocols. With 17 I/O lines and a 20-DIP (0.300", 7.62mm) through-hole package, this microcontroller is suitable for applications in industrial automation, consumer electronics, and automotive systems. Operating within a voltage range of 1.8V to 3.6V and an ambient temperature of 0°C to 70°C, the Z8F2480PH020SG is supplied in a tube.
Additional Information
Series: Encore!® XP®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

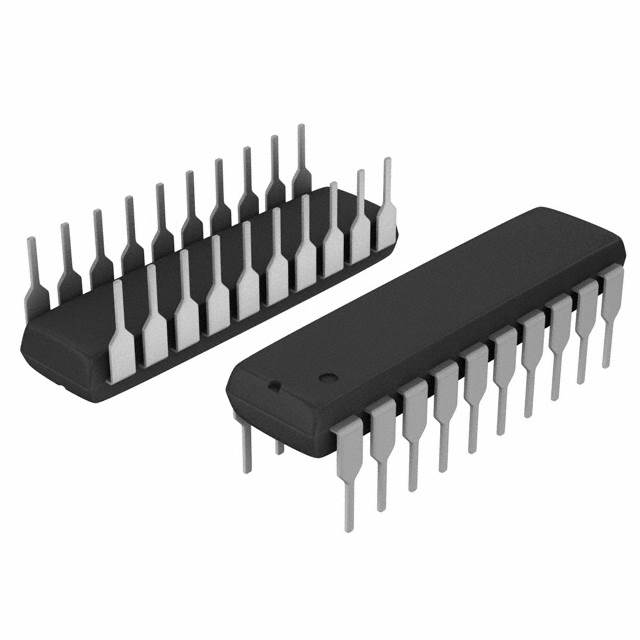

| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Speed | 20MHz |
| Program Memory Size | 24KB (24K x 8) |
| RAM Size | 3K x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | eZ8 |
| Data Converters | A/D 7x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Connectivity | I2C, IrDA, LINbus, UART/USART |
| Peripherals | Brown-out Detect/Reset, LED, LVD, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 17 |
| Programmable | Not Verified |
