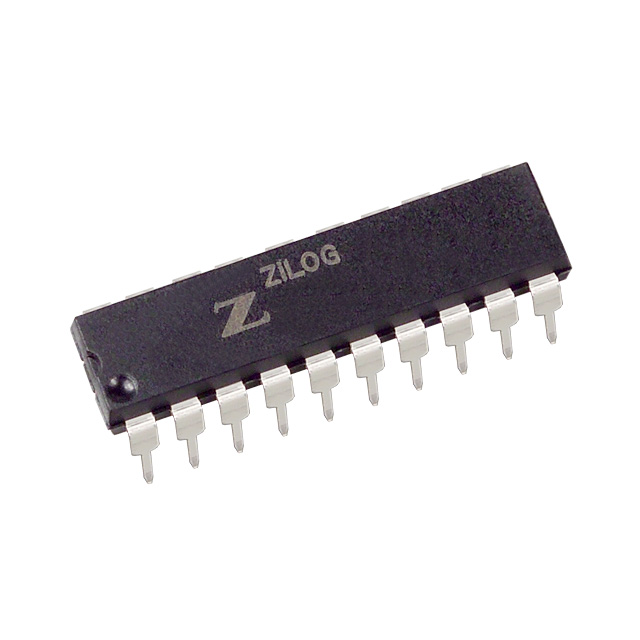

Z8F043APH020EG
IC MCU 8BIT 4KB FLASH 20DIPManufacturer: Zilog
Categories: Microcontrollers
Quality Control: Learn More
The Zilog eZ8 Encore!® Z8F043APH020EG is an 8-bit microcontroller featuring a 4KB FLASH program memory with 256 bytes of RAM. This device operates at a maximum frequency of 20MHz and integrates an internal oscillator. It offers 17 general-purpose I/O pins and includes an A/D converter with 7x10-bit channels. Peripherals consist of Brown-out Detect/Reset, LED control, Power-On Reset (POR), Pulse Width Modulation (PWM), and Watchdog Timer (WDT). The Z8F043APH020EG is housed in a 20-PDIP package, suitable for through-hole mounting, and operates across a temperature range of -40°C to 105°C. This component is commonly utilized in industrial automation and consumer electronics applications. The device operates from a supply voltage of 2.7V to 3.6V.
Additional Information
Series: Encore!®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Speed | 20MHz |
| Program Memory Size | 4KB (4K x 8) |
| RAM Size | 256 x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | eZ8 |
| Data Converters | A/D 7x10b |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Connectivity | - |
| Peripherals | Brown-out Detect/Reset, LED, POR, PWM, WDT |
| Supplier Device Package | 20-PDIP |
| Number of I/O | 17 |
| Programmable | Not Verified |
