Z86E3016PSG

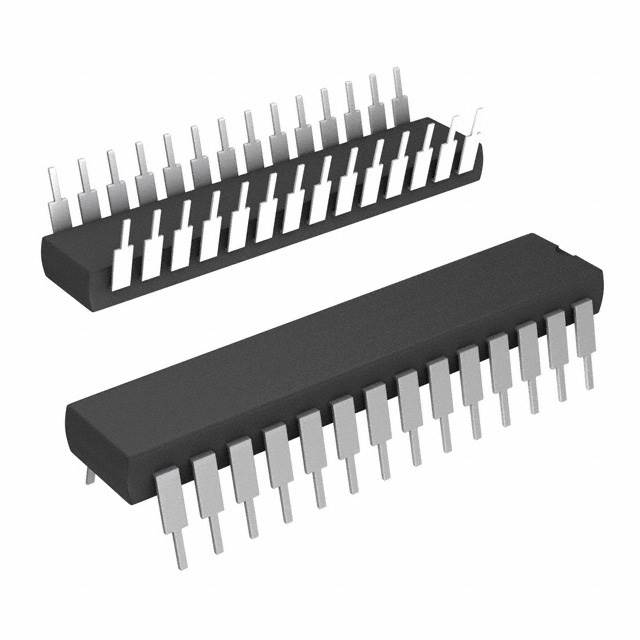

IC MCU 8BIT 4KB OTP 28DIPManufacturer: Zilog
Categories: Microcontrollers
Quality Control: Learn More
The Zilog Z8® microcontroller, part number Z86E3016PSG, is an 8-bit device featuring a 4KB One-Time Programmable (OTP) program memory and 237 x 8 bytes of RAM. This unit operates at a speed of 16MHz and requires a supply voltage between 3.5V and 5.5V. Integrated peripherals include Power-On Reset (POR) and Watchdog Timer (WDT), with an internal oscillator. The component offers 24 general-purpose I/O pins and is housed in a 28-DIP (0.600", 15.24mm) package, suitable for through-hole mounting. This microcontroller finds application in various industrial automation and consumer electronics sectors, including automotive and telecommunications.
Additional Information
Series: Z8®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 16MHz |
| Program Memory Size | 4KB (4K x 8) |
| RAM Size | 237 x 8 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | OTP |
| EEPROM Size | - |
| Core Processor | Z8 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 5.5V |
| Connectivity | - |
| Peripherals | POR, WDT |
| Number of I/O | 24 |
| Programmable | Verified |
