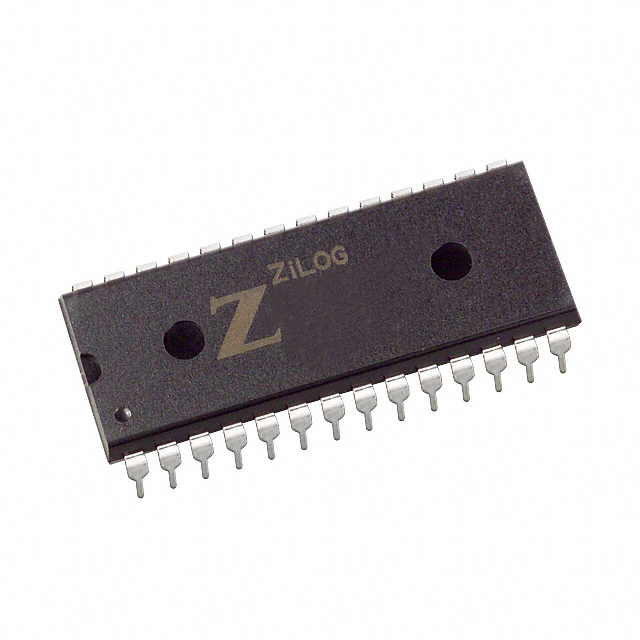

Z86C3312PECR2035
IC MCU 8BIT 4KB ROM 28DIPManufacturer: Zilog
Categories: Microcontrollers
Quality Control: Learn More
The Zilog Z8® microcontroller, part number Z86C3312PECR2035, is an 8-bit MCU featuring a 12MHz Z8 core. This component offers 4KB of ROM for program storage and 237 bytes of RAM. It includes essential peripherals such as Power-On Reset (POR) and a Watchdog Timer (WDT). The device supports EBI/EMI connectivity and operates from a 3V to 5.5V supply. With 24 I/O pins and an internal oscillator, it is suitable for through-hole mounting in a 28-DIP package. Operating temperature ranges from -40°C to 105°C (TA). This microcontroller finds application in various industrial and consumer electronics sectors.
Additional Information
Series: Z8®RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Speed | 12MHz |
| Program Memory Size | 4KB (4K x 8) |
| RAM Size | 237 x 8 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROM |
| EEPROM Size | - |
| Core Processor | Z8 |
| Data Converters | - |
| Core Size | 8-Bit |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Connectivity | EBI/EMI |
| Peripherals | POR, WDT |
| Supplier Device Package | 28-DIP |
| Number of I/O | 24 |
| Programmable | Not Verified |
