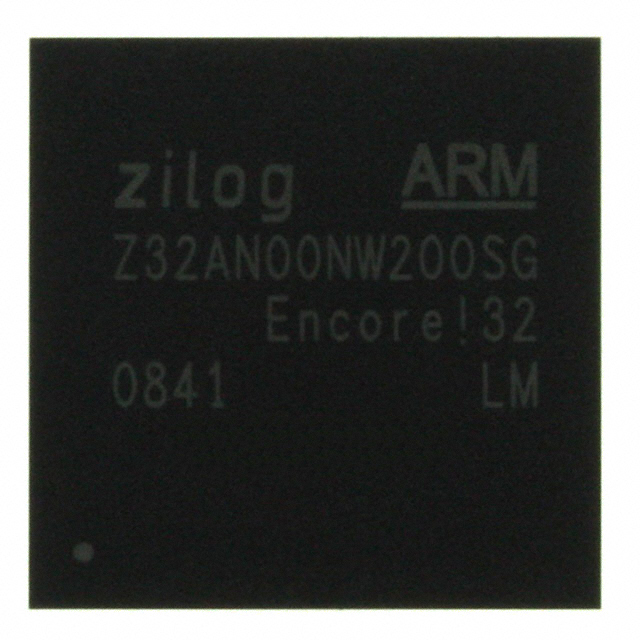

Z32AN00NW200SG
IC MCU 32BIT ROMLESS 256BGAManufacturer: Zilog
Categories: Microcontrollers
Quality Control: Learn More
Zilog Z32AN00NW200SG is a ROMless ARM9® Encore!® 32 microcontroller. This 16/32-bit device operates at 200MHz and features 64K x 8 RAM. Connectivity options include EBI/EMI, IrDA, SmartCard, SPI, UART/USART, and USB OTG. Integrated peripherals include DMA, LCD, Magnetic Card Reader, POR, PWM, and WDT. It also incorporates 4x10-bit Analog-to-Digital converters. The Z32AN00NW200SG is available in a 256-LBGA surface mount package. This component is suitable for applications in consumer electronics, industrial control, and automotive systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: Encore!® 32RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 256-LBGA |
| Mounting Type | Surface Mount |
| Speed | 200MHz |
| Program Memory Size | - |
| RAM Size | 64K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | ARM9® |
| Data Converters | A/D 4x10b |
| Core Size | 16/32-Bit |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Connectivity | EBI/EMI, IrDA, SmartCard, SPI, UART/USART, USB OTG |
| Peripherals | DMA, LCD, Magnetic Card Reader, POR, PWM, WDT |
| Number of I/O | 76 |
| Programmable | Not Verified |
