EZ80F915050MODG
IC MOD EZ80F91 50MHZ 8KBManufacturer: Zilog
Categories: Microcontrollers, Microprocessor, FPGA Modules
Quality Control: Learn More

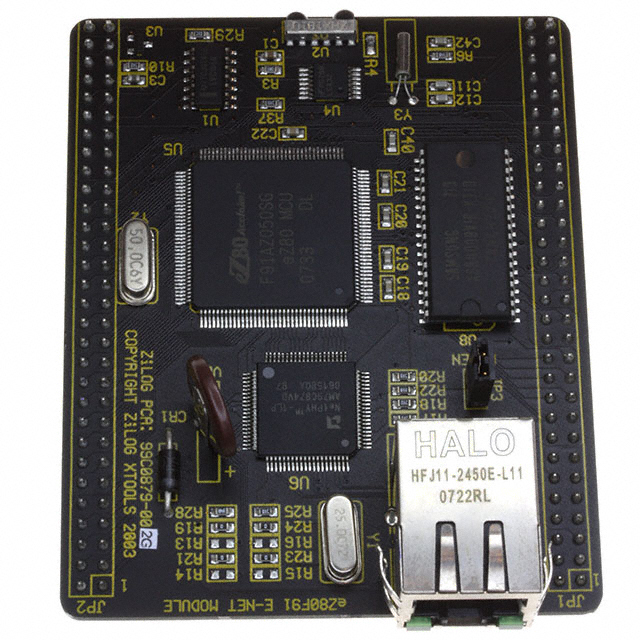

Zilog eZ80® Acclaim!® EZ80F915050MODG is a compact embedded module featuring the eZ80F91 core processor operating at 50MHz. This module integrates an 8KB internal RAM and 256KB internal Flash memory, complemented by external memory interfaces supporting up to 512KB RAM and 1MB Flash. Designed as an MCU with an Ethernet core, it includes a 2x30 header connector for system integration. The EZ80F915050MODG is suitable for applications in industrial automation, networking, and consumer electronics where robust embedded control and connectivity are required. Its operating temperature range is 0°C to 70°C. Dimensions are 2.500" L x 3.100" W (63.50mm x 78.70mm).
Additional Information
Series: eZ80® Acclaim!®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Connector Type | Header 2x30 |
| Size / Dimension | 2.500"" L x 3.100"" W (63.50mm x 78.70mm) |
| Speed | 50MHz |
| RAM Size | 8KB (Internal), 512KB (External) |
| Operating Temperature | 0°C ~ 70°C |
| Module/Board Type | MCU, Ethernet Core |
| Core Processor | eZ80F91 |
| Co-Processor | - |
| Flash Size | 256KB (Internal), 1MB (External) |
