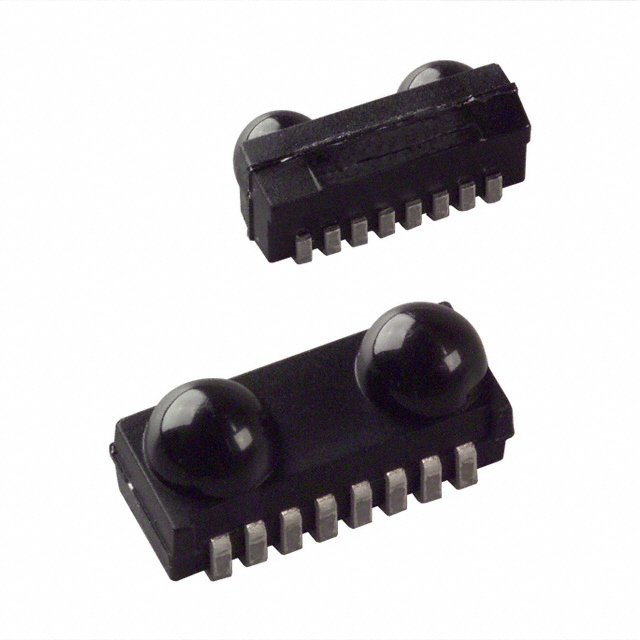

ZHX2022MV040THTR
IC TXRX ZHX2022 SIDE LOOK 8SMDManufacturer: Zilog
Categories: IrDA Transceiver Modules
Quality Control: Learn More
Zilog ZHX2022MV040THTR IrDA Transceiver. This component facilitates IrDA communication up to 4Mbs using the FIR standard. Designed for a supply voltage range of 2.7V to 5.5V, it features a typical idle current of 2 mA at 25°C. The ZHX2022MV040THTR is presented in an 8-SMD package with a top-view orientation and is supplied on tape and reel. Its compact dimensions of 9.7mm x 4.7mm x 4.0mm make it suitable for space-constrained applications. The device includes a shutdown feature for power management. This transceiver finds application in consumer electronics, industrial automation, and medical devices requiring short-range, serial infrared data transfer.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Orientation | Top View |
| Operating Temperature | -25°C ~ 85°C |
| Size | 9.7mm x 4.7mm x 4.0mm |
| Data Rate | 4Mbs (FIR) |
| Standards | IrPHY 1.4 |
| Link Range, Low Power | - |
| Shutdown | Yes |
| Voltage - Supply | 2.7 V ~ 5.5 V |
| Idle Current, Typ @ 25°C | 2 mA |
