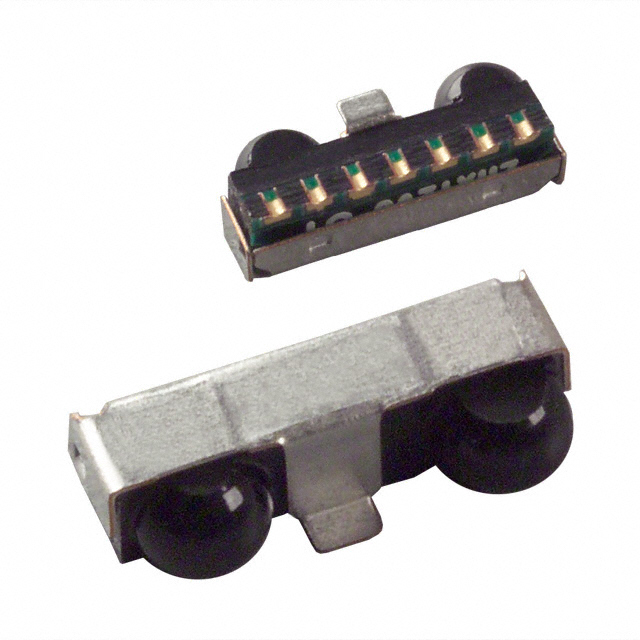

ZHX1403MA115THTR
IRDA MODULE 115.2KBPS 7SMDManufacturer: Zilog
Categories: IrDA Transceiver Modules
Quality Control: Learn More
Zilog SIR UltraSlim™ ZHX1403MA115THTR is an IrDA transceiver module supporting the Serial Infrared (SIR) standard at 115.2 kbs. This component features a side-view orientation and a compact 7SMD package, measuring 7.3mm x 2.8mm x 1.9mm, ideal for space-constrained applications. It operates across a voltage supply range of 2.4V to 3.6V and exhibits a typical idle current of 100 nA at 25°C. The module includes a shutdown feature for power conservation and offers a low-power link range of 1 meter. Compliant with IrPHY 1.4 standards, this Zilog component is suitable for use in consumer electronics, personal computing, and industrial automation where short-range wireless communication is required. The ZHX1403MA115THTR is supplied in Tape & Reel packaging.
Additional Information
Series: SIR UltraSlim™RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Orientation | Side View |
| Operating Temperature | -30°C ~ 85°C |
| Size | 7.3mm x 2.8mm x 1.9mm |
| Data Rate | 115.2kbs (SIR) |
| Standards | IrPHY 1.4 |
| Link Range, Low Power | 1M |
| Shutdown | Yes |
| Voltage - Supply | 2.4 V ~ 3.6 V |
| Idle Current, Typ @ 25°C | 100 nA |
