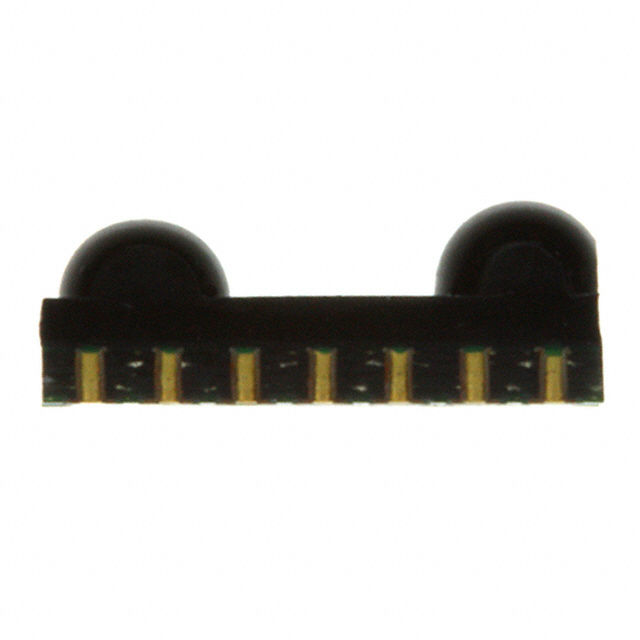

ZHX1223TB115THTR
IRDA MODULE 115.2KBPS 7SMDManufacturer: Zilog
Categories: IrDA Transceiver Modules
Quality Control: Learn More
Zilog SIR UltraSlim™ ZHX1223TB115THTR is an IrDA transceiver module supporting the 115.2kbs SIR standard. This compact, top-view 7SMD component features a low idle current of 90 µA typical at 25°C and a low-power link range of 20cm. Operating within a 2.4 V to 3.6 V supply voltage, it meets the IrPHY 1.4 standard. The module is supplied on tape and reel (TR) and measures 7.3mm x 2.8mm x 1.9mm. Its operating temperature range is -30°C to 85°C, and it includes a shutdown mode for power conservation. This component is suitable for applications in consumer electronics and industrial automation requiring short-range, high-speed infrared data communication.
Additional Information
Series: SIR UltraSlim™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Orientation | Top View |
| Operating Temperature | -30°C ~ 85°C |
| Size | 7.3mm x 2.8mm x 1.9mm |
| Data Rate | 115.2kbs (SIR) |
| Standards | IrPHY 1.4 |
| Link Range, Low Power | 20cm |
| Shutdown | Yes |
| Voltage - Supply | 2.4 V ~ 3.6 V |
| Idle Current, Typ @ 25°C | 90 µA |
Request a Quote
Clients Also Buy

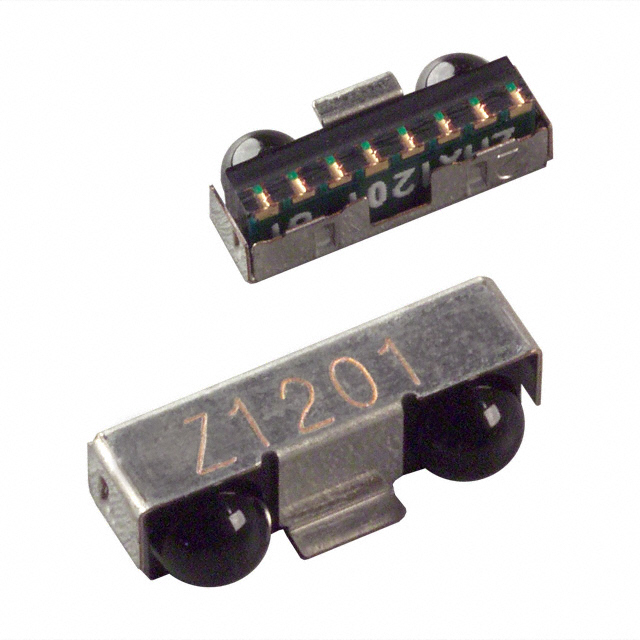

ZHX1201MB115THTR
