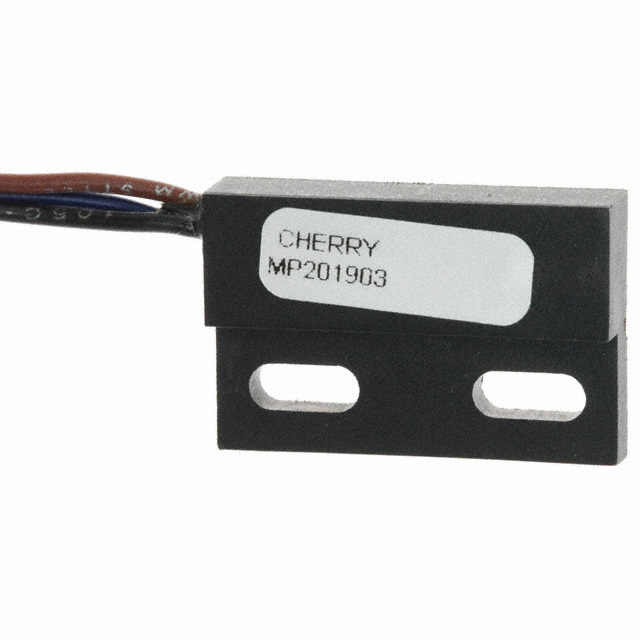

MP201903
SENSOR REED SW SPDT WIRE LEADSManufacturer: ZF Electronics
Categories: Position, Proximity, Speed (Modules)
Quality Control: Learn More
ZF Electronics MP2 Series MP201903 is a single-pole, double-throw (SPDT) magnetic reed switch designed for precise position sensing applications. This component features wire leads for termination and is housed in a rectangular package. The reed switch operates using a magnetic actuator, with a "must operate" distance of 10.16mm and a "must release" distance of 22.86mm. It is suitable for operation across a wide temperature range of -40°C to 105°C. The MP201903 is commonly utilized in industrial automation, automotive systems, and security applications where reliable contact closure based on magnetic field presence is required. The component is supplied in bulk packaging.
Additional Information
Series: MP2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Rectangular, Wire Leads |
| Output Type | SPDT |
| Type | Reed Switch |
| Operating Temperature | -40°C ~ 105°C |
| Termination Style | Wire Leads |
| Voltage - Supply | - |
| Must Operate | 10.16mm |
| Must Release | 22.86mm |
| Actuator Material | Magnet |
