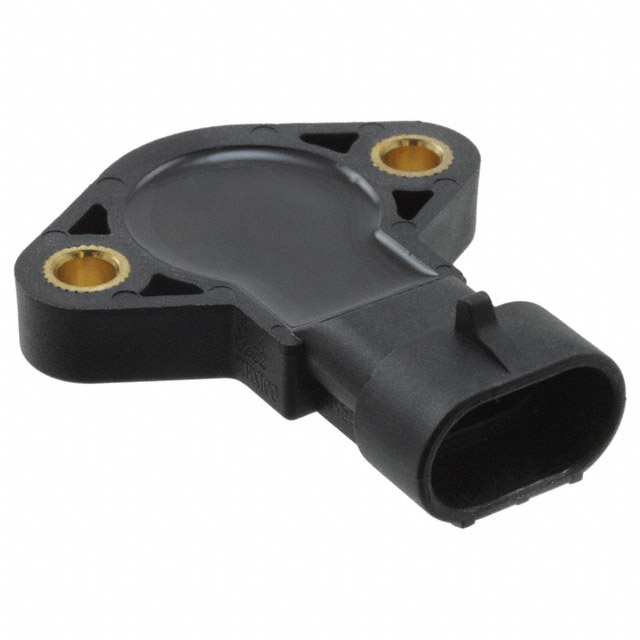

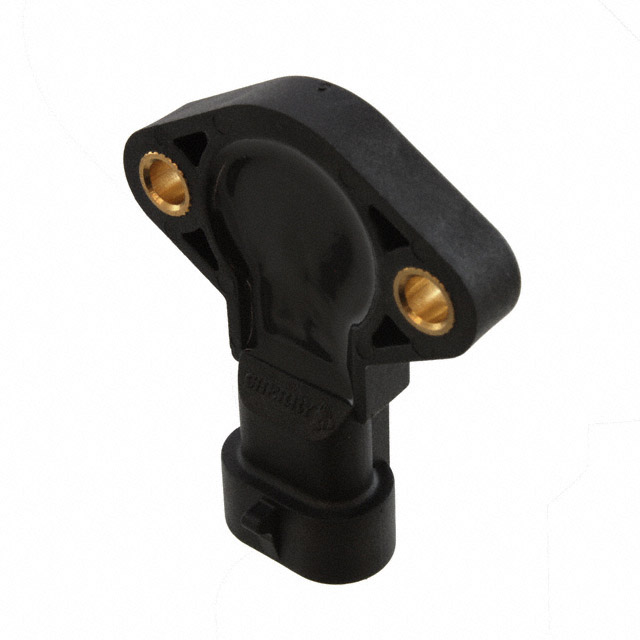

AN820001
SENSOR ANGLE 180DEG CONNECTORManufacturer: ZF Electronics
Categories: Angle, Linear Position Measuring
Quality Control: Learn More
Hall Effect Sensor Angle External Magnet, Not Included Connector
Additional Information
Series: AN8RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Box with Connector |
| Mounting Type | Chassis Mount |
| Output | Analog Voltage |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Connector |
| Voltage - Supply | 5V |
| Linearity | ±3.5% |
| Linear Range | - |
| Actuator Type | External Magnet, Not Included |
| Technology | Hall Effect |
| Resistance Tolerance | - |
| For Measuring | Angle |
| Supplier Device Package | - |
| Rotation Angle - Electrical, Mechanical | 0° ~ 180°, Continuous |
| Output Signal | Clockwise Increase |
| Programmable | - |
Request a Quote
Clients Also Buy

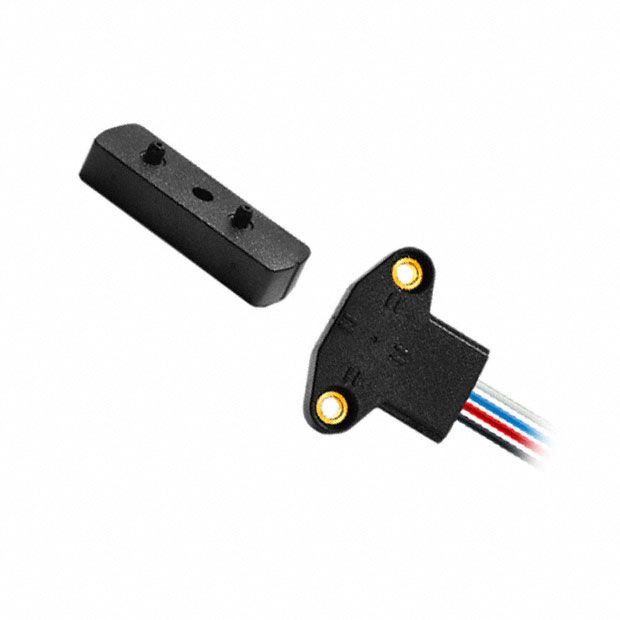

LIN-11HAW1
SENSOR LINEAR 45MM WIRE LEADS
LIN-21HAW1
SENSOR LINEAR 45MM WIRE LEADS

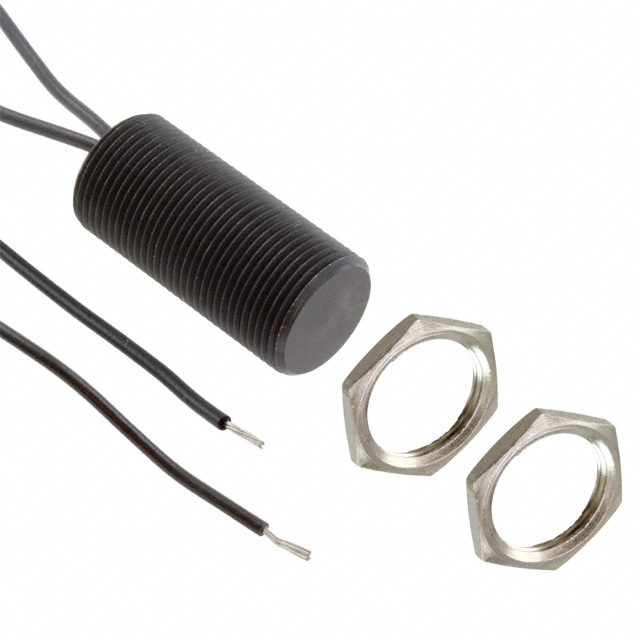

MP200701
