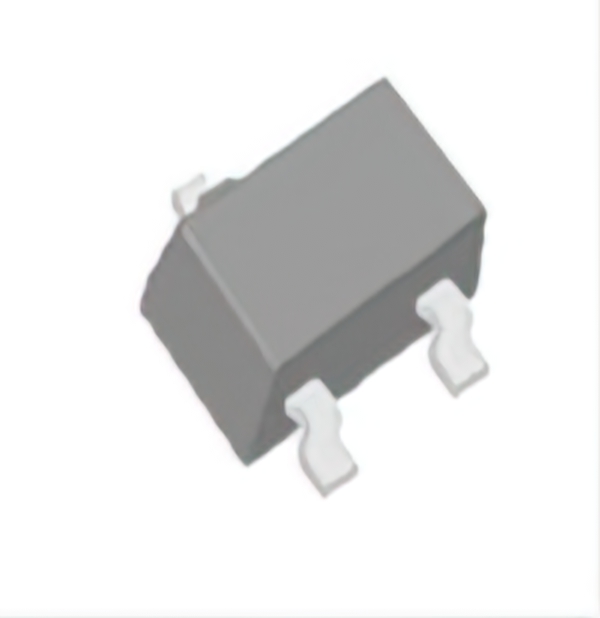

XP60PN72RLEN
MOSFET N-CH 600V 53MA SOT23Manufacturer: YAGEO XSEMI
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 600 V 53mA (Ta) 500mW (Ta) Surface Mount SOT-23
Additional Information
Series: XP60PN72RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 53mA (Ta) |
| Rds On (Max) @ Id, Vgs | 72Ohm @ 50mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Vgs(th) (Max) @ Id | 2.6V @ 250µA |
| Supplier Device Package | SOT-23 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 3.7 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 64 pF @ 100 V |
