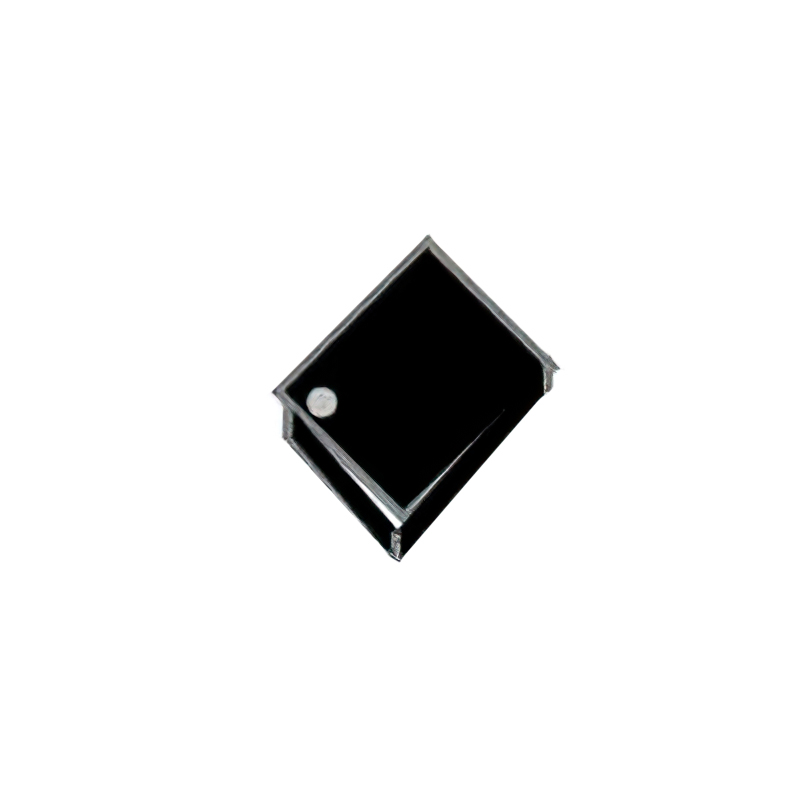

XP4N4R2MT
MOSFET N CH 40V 20.7A PMPAK5X6Manufacturer: YAGEO XSEMI
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 25.8A (Ta), 60A (Tc) 5W (Ta), 52W (Tc) Surface Mount 8-PMPAK (5x6)
Additional Information
Series: XP4N4R2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerLDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 25.8A (Ta), 60A (Tc) |
| Rds On (Max) @ Id, Vgs | 4.2mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 5W (Ta), 52W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 8-PMPAK (5x6) |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 41.6 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4400 pF @ 20 V |
| Qualification | - |
