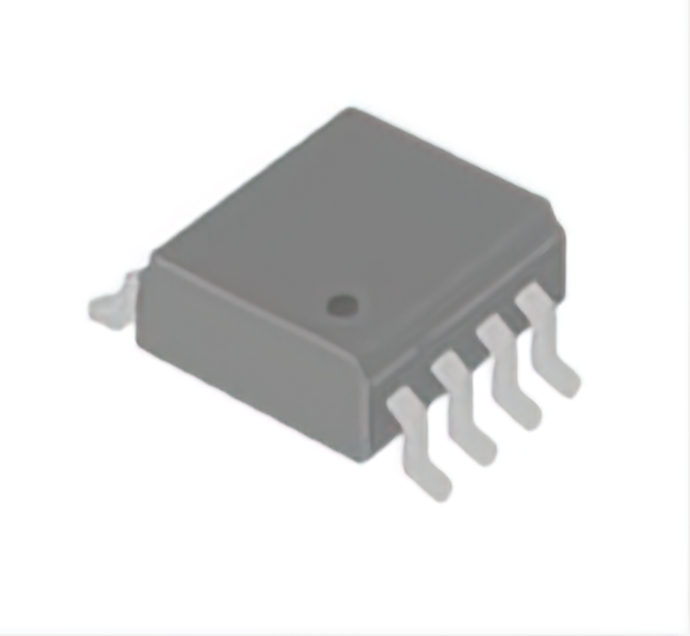

XP3P020M
MOSFET P-CH 30V 9.3A 8SOManufacturer: YAGEO XSEMI
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 30 V 9.3A (Ta) 2.5W (Ta) Surface Mount 8-SO
Additional Information
Series: XP3P020RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-SOIC |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 9.3A (Ta) |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 9A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 8-SO |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 19.2 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2080 pF @ 15 V |
