XP3N9R5AYT

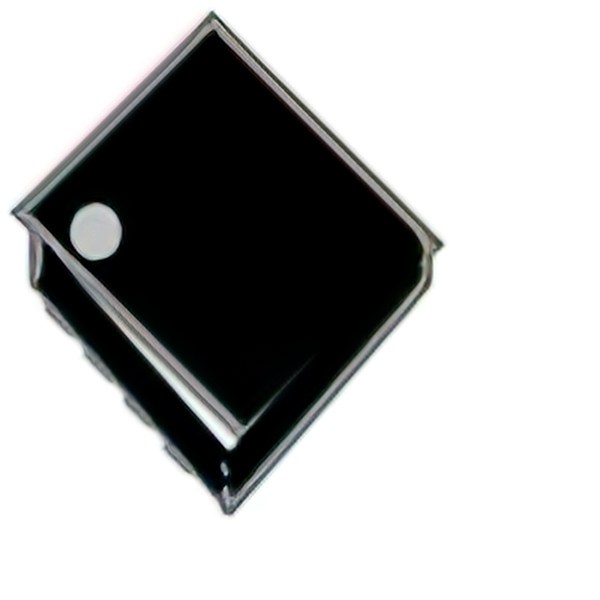

MOSFET N-CH 30V 38.7A PMPAKManufacturer: YAGEO XSEMI
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 15A (Ta), 38.7A (Tc) 3.57W (Ta) Surface Mount PMPAK® 3 x 3
Additional Information
Series: XP3N9R5ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-PowerDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 38.7A (Tc) |
| Rds On (Max) @ Id, Vgs | 9.5mOhm @ 9.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3.57W (Ta) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | PMPAK® 3 x 3 |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 28.8 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1280 pF @ 15 V |
