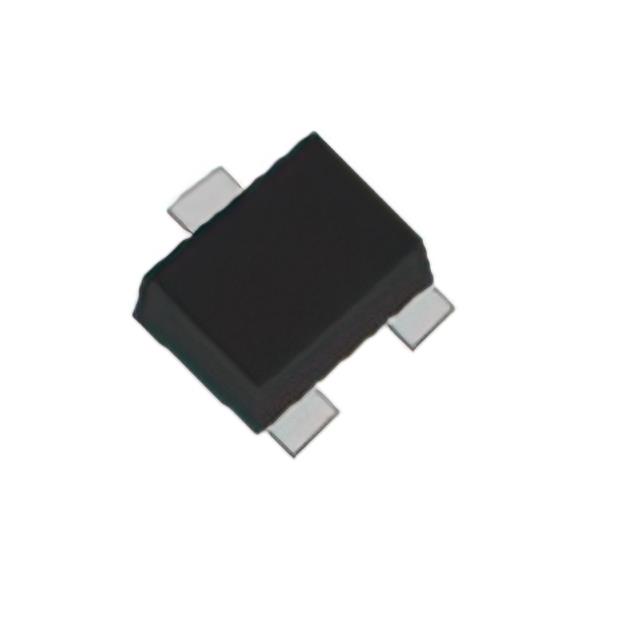

XP2N1K2EN1
MOSFET N-CH 20V 200MA SOT723Manufacturer: YAGEO XSEMI
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 20 V 200mA (Ta) 150mW (Ta) Surface Mount SOT-723
Additional Information
Series: XP2N1K2ERoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-723 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 200mA (Ta) |
| Rds On (Max) @ Id, Vgs | 1.2Ohm @ 200mA, 2.5V |
| FET Feature | - |
| Power Dissipation (Max) | 150mW (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Supplier Device Package | SOT-723 |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 2.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 0.7 nC @ 2.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 44 pF @ 10 V |
