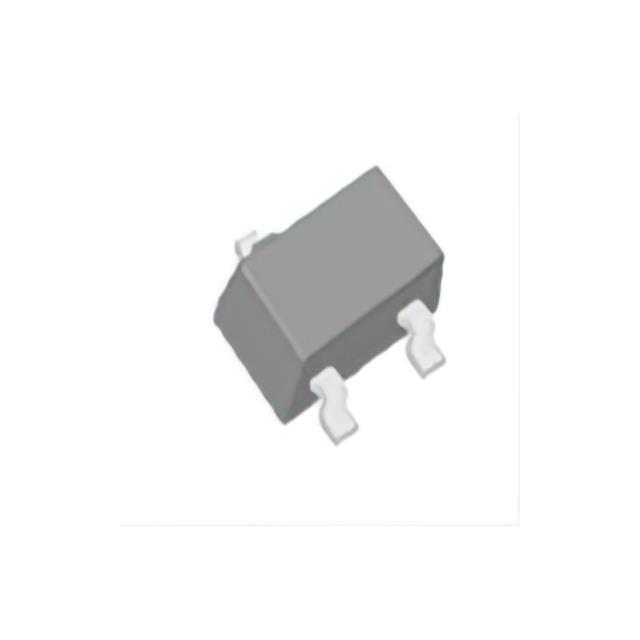

XP2344GN
MOSFET N + P CH 20V 6.4A SOT23Manufacturer: YAGEO XSEMI
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 20 V 6.4A (Ta) 1.38W (Ta) Surface Mount SOT-23
Additional Information
Series: XP2344RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6.4A (Ta) |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 6A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1.38W (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | SOT-23 |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±8V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 35.2 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2430 pF @ 10 V |
