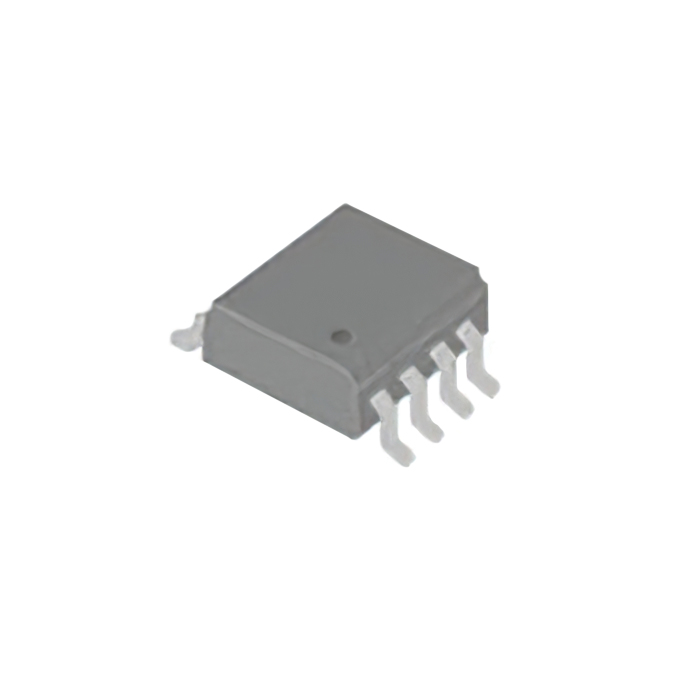

XP10N011LM
MOSFET N CH 100V 11A SO-8Manufacturer: YAGEO XSEMI
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 11A (Ta) 2.5W (Ta) Surface Mount 8-SO
Additional Information
Series: XP10N011LRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta) |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 10A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-SO |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 44.8 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1920 pF @ 80 V |
| Qualification | - |
