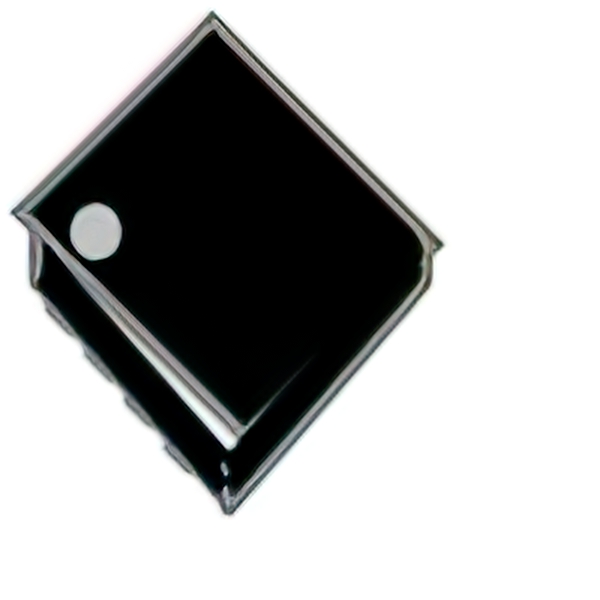

XP3700YT
MOSFET N AND P-CH 30V 8.7A 6.1AManufacturer: YAGEO XSEMI
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 8.7A (Ta), 6.1A (Tc) 2.5W (Ta) Surface Mount PMPAK® 3 x 3
Additional Information
Series: XP3700RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerDFN |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 2.5W (Ta) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 8.7A (Ta), 6.1A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 880pF @ 15V |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 8A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 8nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | PMPAK® 3 x 3 |
Request a Quote
