XP2530AGY
MOSFET N AND P-CH 30V 3.3A 2.3AManufacturer: YAGEO XSEMI
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 3.3A (Ta), 2.3A (Ta) 1.136W (Ta) Surface Mount SOT-26
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |

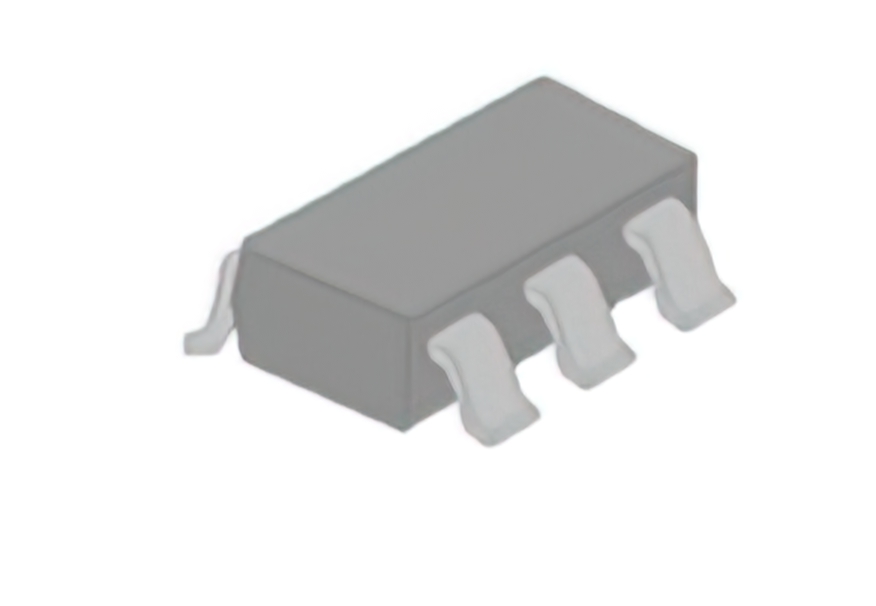

| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 1.136W (Ta) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 3.3A (Ta), 2.3A (Ta) |
| Input Capacitance (Ciss) (Max) @ Vds | 320pF @ 15V, 260pF @ 15V |
| Rds On (Max) @ Id, Vgs | 72mOhm @ 3A, 10V, 150mOhm @ 2A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 4.5nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | SOT-26 |
