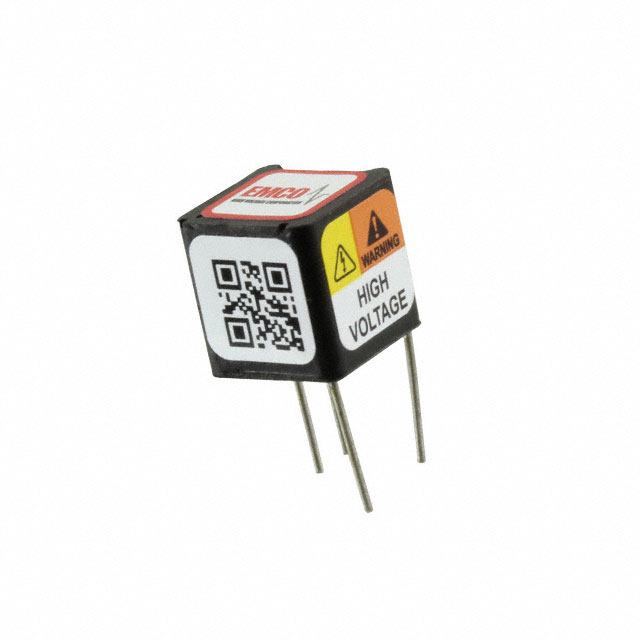

Q04-5
DC DC CONVERTER 400V 500MWManufacturer: XP Power
Categories: DC DC Converters
Quality Control: Learn More
High Voltage - Isolated Module DC DC Converter 1 Output 400V 1.25mA 0.7V - 5V Input
Additional Information
Series: XP EMCO - Q (0.5W)RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Proportional Output |
| Packaging | Box |
| Package / Case | 4-DIP Module |
| Size / Dimension | 0.50"" L x 0.50"" W x 0.50"" H (12.7mm x 12.7mm x 12.7mm) |
| Mounting Type | Through Hole |
| Type | High Voltage - Isolated Module |
| Operating Temperature | -25°C ~ 70°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 5V |
| Efficiency | - |
| Current - Output (Max) | 1.25mA |
| Voltage - Input (Min) | 0.7V |
| Voltage - Output 1 | 400V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Power (Watts) | 500 mW |
| Number of Outputs | 1 |
| Voltage - Isolation | 500 V |
| Standard Number | 62368-1 |
Request a Quote
