440GS67082622
SWITCH TACTILE SPST-NO 0.05A 12VManufacturer: Würth Elektronik
Categories: Tactile Switches
Quality Control: Learn More

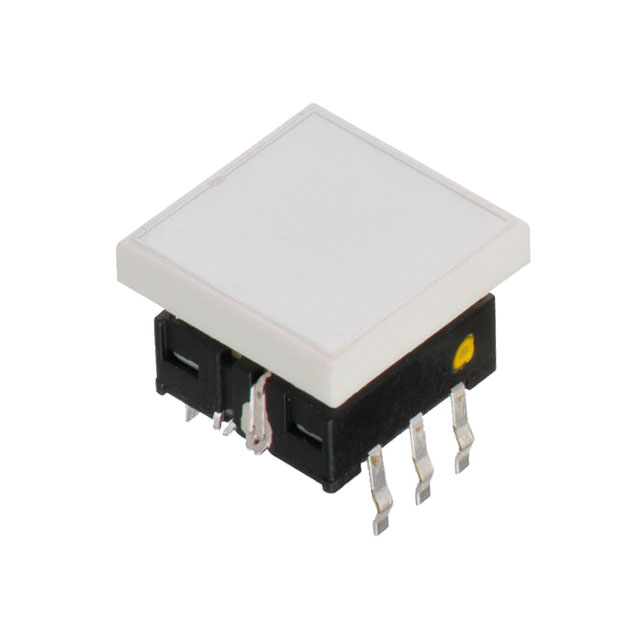

Tactile Switch SPST-NO Top Actuated Through Hole
Additional Information
Series: WS-TATLRoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Mounting Type | Through Hole |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 3.2 VDC |
| Illumination | Illuminated |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Square Button |
| Operating Force | 220gf |
| Outline | 12.00mm x 12.00mm |
| Ingress Protection | - |
| Actuator Height off PCB, Vertical | 8.20mm |
| Actuator Orientation | Top Actuated |
| Actuator Length, Right Angle | - |
