750313441
XFMR FLYBACK DC/DC CONV 9UH SMDManufacturer: Würth Elektronik
Categories: Switching Converter, SMPS Transformers
Quality Control: Learn More
Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation Surface Mount
Additional Information
Series: WE-FB, MID-FLYLTRoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Size / Dimension | - |
| Mounting Type | Surface Mount |
| Frequency | - |
| Type | For DC/DC Converters |
| Operating Temperature | - |
| Applications | Flyback Converters |
| Voltage - Isolation | 1500Vrms |
| Intended Chipset | LT8302 |
| Voltage - Primary | 8 ~ 32V |
| Voltage - Auxiliary | - |
| Footprint | 0.525"" L x 0.600"" W (13.34mm x 15.24mm) |
| Chipset Manufacturer | Linear Technology |
| Height - Seated (Max) | 0.450"" (11.43mm) |
| Inductance @ Frequency | 9µH @ 10kHz |
Request a Quote
Clients Also Buy

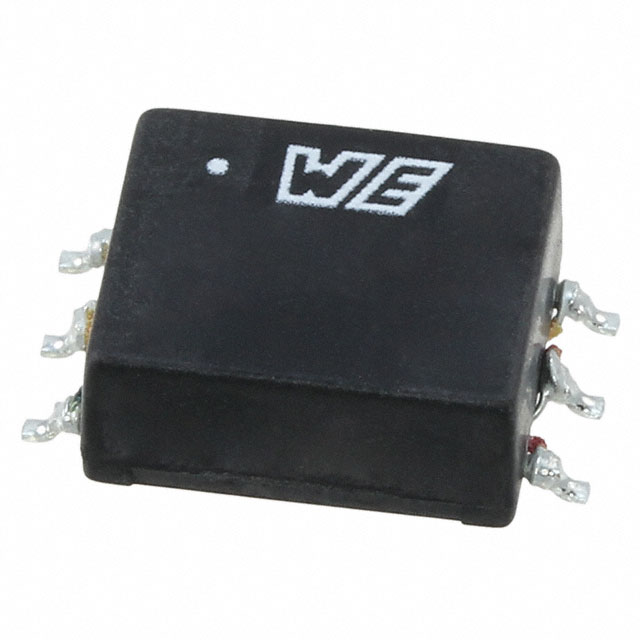

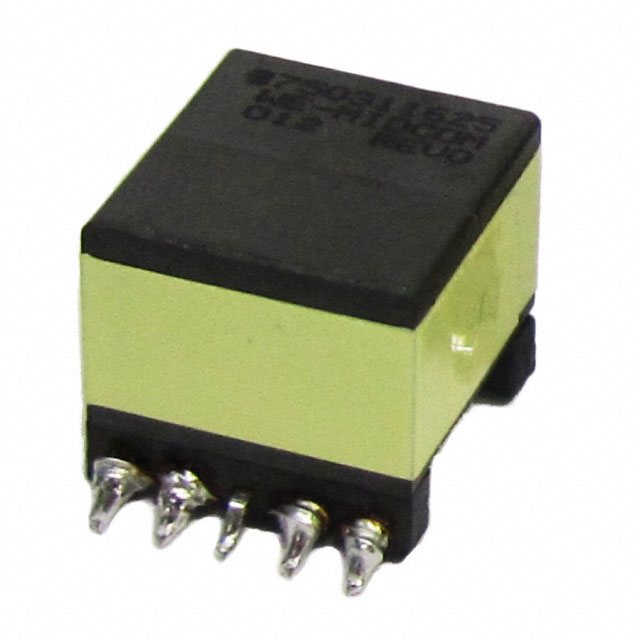

750313445
XFMR FLYBACK DC/DC CONV 9UH SMD

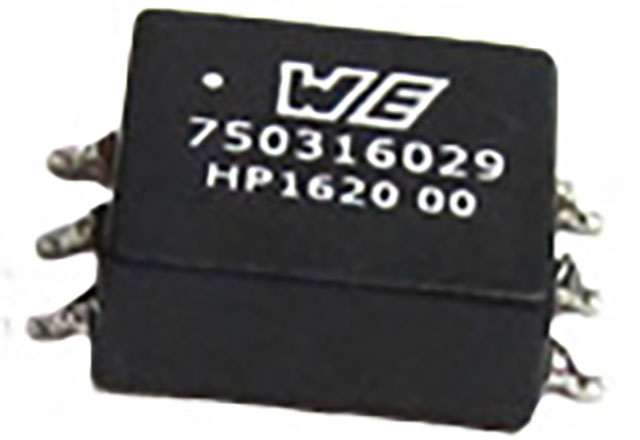

750316029
XFMR FWD P-P DC/DC CONV 72UH SMD

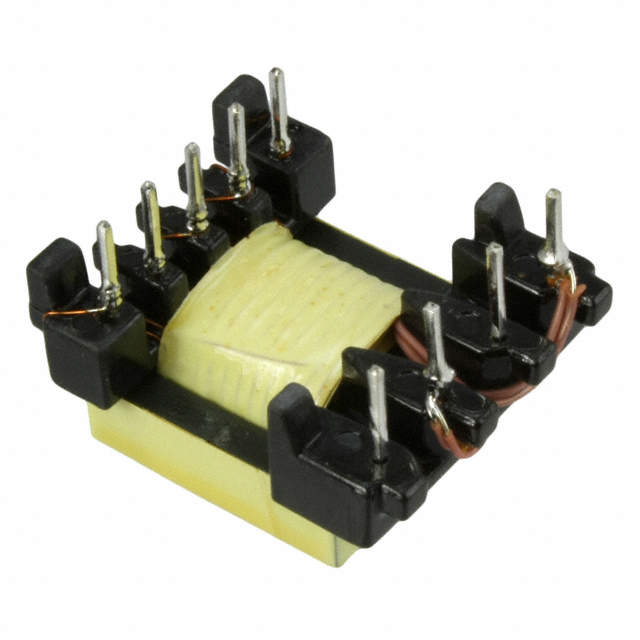

750815141
