158353027

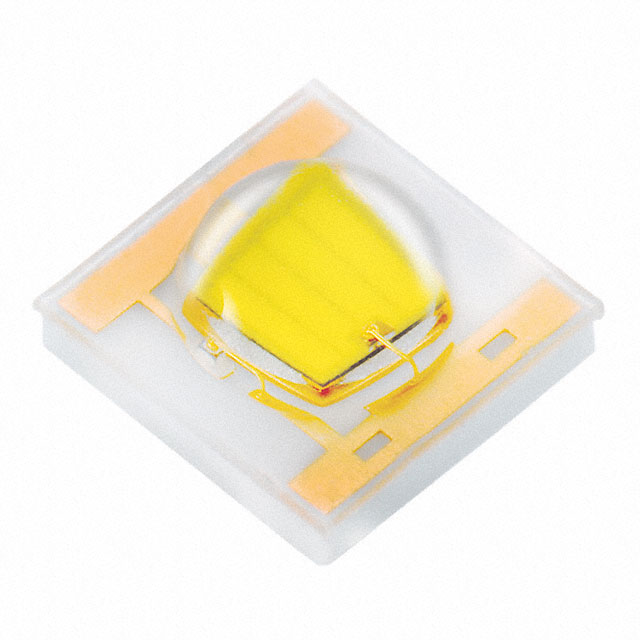

LED WL-SWTC WARM WHT 2700K 3535Manufacturer: Würth Elektronik
Categories: LED White Lighting
Quality Control: Learn More
Würth Elektronik WL-SWTC Series LED, part number 158353027, is a warm white illumination component with a Correlated Color Temperature (CCT) of 2700K. This surface-mount device is housed in a 3535 metric package, measuring 3.45mm x 3.45mm. It operates with a typical forward voltage of 3.2V and a test current of 350mA, delivering a typical luminous flux of 95 lumens with a Color Rendering Index (CRI) of 80. The component features a wide 120° viewing angle and a maximum current rating of 1A, offering 85 lm/W efficacy at the test current. This LED is commonly employed in general lighting applications, architectural lighting, and display backlighting. It is supplied on tape and reel.
Additional Information
Series: WL-SWTCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1414 (3535 Metric) |
| Color | White, Warm |
| Size / Dimension | 0.136"" L x 0.136"" W (3.45mm x 3.45mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Current - Test | 350mA |
| Viewing Angle | 120° |
| Current - Max | 1A |
| Supplier Device Package | 3535 |
| Lumens/Watt @ Current - Test | 85 lm/W |
| Height - Seated (Max) | 0.079"" (2.00mm) |
| CCT (K) | 2700K |
| CRI (Color Rendering Index) | 80 (Typ) |
| Flux @ 25°C, Current - Test | 95lm (Typ) |
| Flux @ 85°C, Current - Test | - |
