61230820621

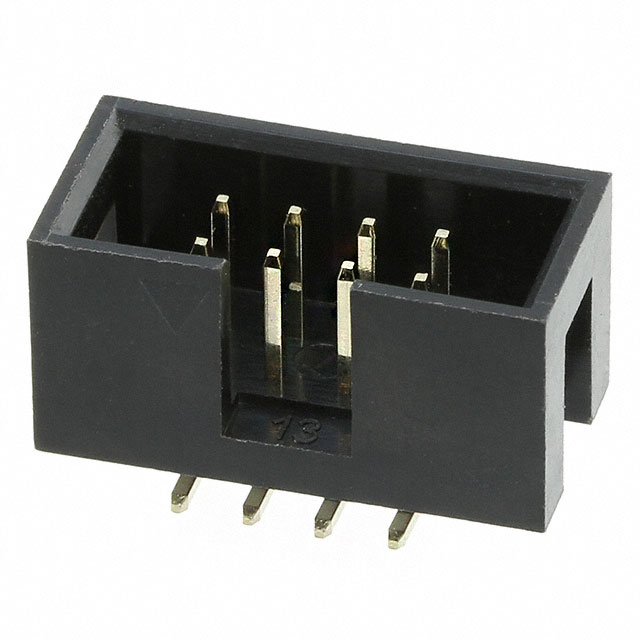

CONN HEADER SMD 8POS 2.54MMManufacturer: Würth Elektronik
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 8 position 0.100"" (2.54mm)
Additional Information
Series: WR-BHDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | Keying Slot, Pick and Place |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | 3A |
| Mounting Type | Surface Mount |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.358"" (9.10mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.232"" (5.90mm) |
