744311220
FIXED IND 2.2UH 9A 11.4 MOHM SMDManufacturer: Würth Elektronik
Categories: Fixed Inductors
Quality Control: Learn More

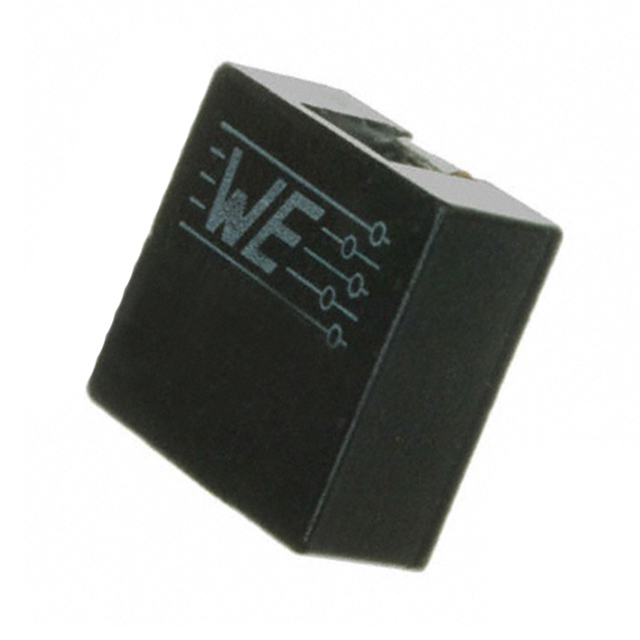

2.2 µH Shielded Wirewound Inductor 9 A 11.4mOhm Nonstandard
Additional Information
Series: WE-HCIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.276"" L x 0.272"" W (7.00mm x 6.90mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Wirewound |
| Operating Temperature | -40°C ~ 150°C |
| DC Resistance (DCR) | 11.4mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 52MHz |
| Ratings | AEC-Q200 |
| Current - Saturation (Isat) | 13A |
| Material - Core | - |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | 7040 |
| Height - Seated (Max) | 0.157"" (4.00mm) |
| Inductance | 2.2 µH |
| Current Rating (Amps) | 9 A |
Request a Quote
