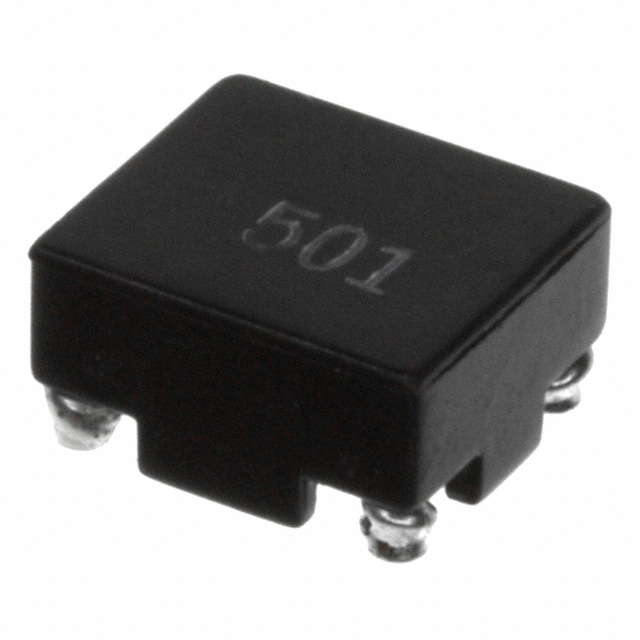

744273501
CMC 5UH 5A 2LN 500 OHM SMDManufacturer: Würth Elektronik
Categories: Common Mode Chokes
Quality Control: Learn More
5 µH 2 Line Common Mode Choke Surface Mount 500 Ohms 5A DCR 5.5mOhm
Additional Information
Series: WE-SL5RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | Horizontal, 4 PC Pad |
| Filter Type | Signal Line |
| Size / Dimension | 0.374"" L x 0.327"" W (9.50mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature | -40°C ~ 125°C |
| Approval Agency | - |
| Ratings | - |
| Height (Max) | 0.209"" (5.30mm) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 80V |
| Current Rating (Max) | 5A |
| DC Resistance (DCR) (Max) | 5.5mOhm |
| Inductance @ Frequency | 5 µH @ 100 kHz |
| Impedance @ Frequency | 500 Ohms @ 130 MHz |
Request a Quote
