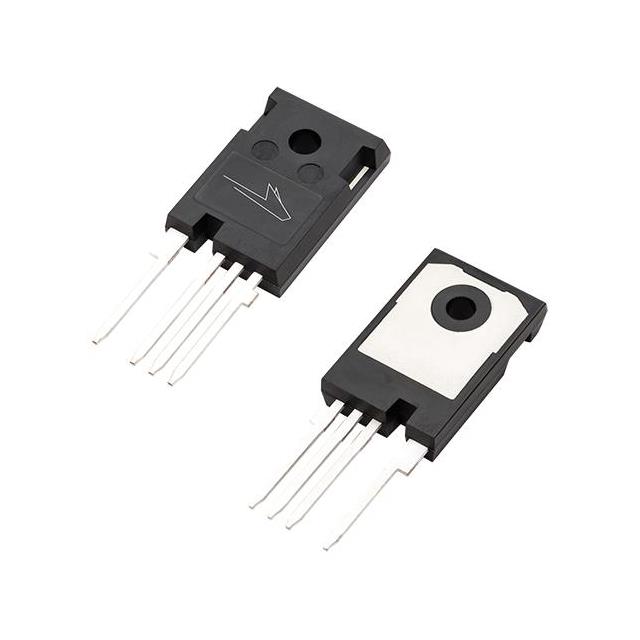

E4M0013120K
13M, 1200V, SIC FET TO-247, AUTOManufacturer: Wolfspeed, Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 1200 V 153A (Tc) 517W (Tc) Through Hole TO-247-4L
Additional Information
Series: ERoHS Status: ROHS3 CompliantManufacturer Lead Time: 70 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 153A (Tc) |
| Rds On (Max) @ Id, Vgs | 17mOhm @ 84.29A, 15V |
| FET Feature | - |
| Power Dissipation (Max) | 517W (Tc) |
| Vgs(th) (Max) @ Id | 3.8V @ 23.18mA |
| Supplier Device Package | TO-247-4L |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Vgs (Max) | +19V, -8V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Gate Charge (Qg) (Max) @ Vgs | 293 nC @ 15 V |
| Input Capacitance (Ciss) (Max) @ Vds | 7407 pF @ 1000 V |
| Qualification | AEC-Q101 |
Request a Quote
