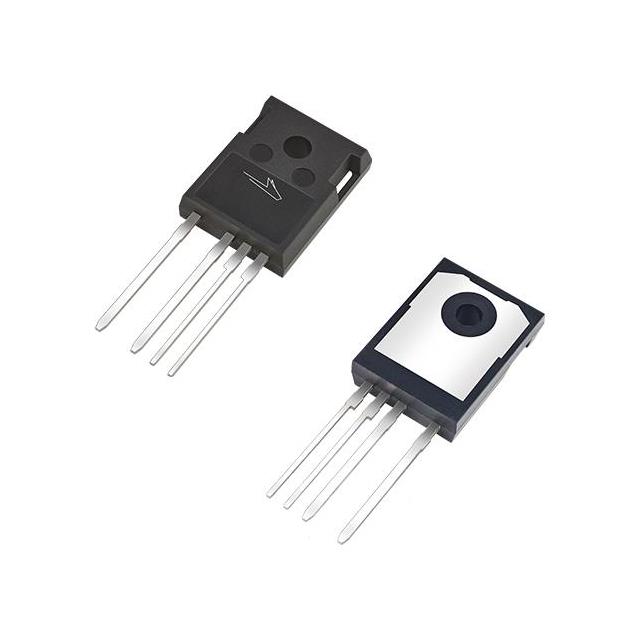

C3M0025075K1
SICFET N-CH 750V 80A TO247Manufacturer: Wolfspeed, Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 750 V 80A (Ta) 262W (Tc) Through Hole TO-247-4L
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 80A (Ta) |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 33.5A, 15V |
| FET Feature | - |
| Power Dissipation (Max) | 262W (Tc) |
| Vgs(th) (Max) @ Id | 3.8V @ 9.22mA |
| Supplier Device Package | TO-247-4L |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Vgs (Max) | -8V, +19V |
| Drain to Source Voltage (Vdss) | 750 V |
| Gate Charge (Qg) (Max) @ Vgs | 119 nC @ 15 V |
| Input Capacitance (Ciss) (Max) @ Vds | 3055 pF @ 500 V |
| Qualification | - |
