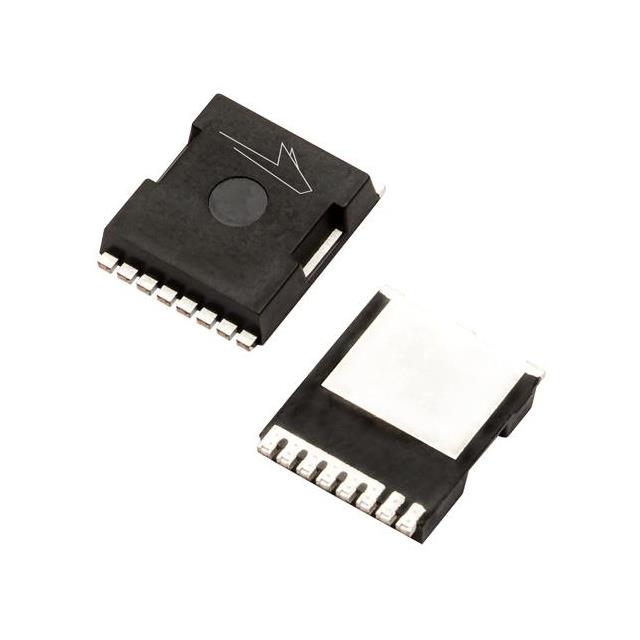

C3M0025065L-TR
SIC, MOSFET, 25M, 650V, TOLL, T&Manufacturer: Wolfspeed, Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 650 V 77A (Tc) 326W (Tc) Surface Mount TOLL
Additional Information
Series: C3M™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 34 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerSFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 77A (Tc) |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 33.5A, 15V |
| FET Feature | - |
| Power Dissipation (Max) | 326W (Tc) |
| Vgs(th) (Max) @ Id | 3.6V @ 9.22mA |
| Supplier Device Package | TOLL |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Vgs (Max) | -8V, +19V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 111 nC @ 15 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2970 pF @ 400 V |
| Qualification | - |
