C4D02120E-TR
DIODE SIL CARB 1.2KV 10A TO252-2Manufacturer: Wolfspeed, Inc.
Categories: Single Diodes
Quality Control: Learn More
Diode 1200 V 10A Surface Mount TO-252-2
Additional Information
Series: Z-Rec®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 167pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 10A |
| Supplier Device Package | TO-252-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 2 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 1200 V |
| Qualification | - |
Request a Quote
Clients Also Buy

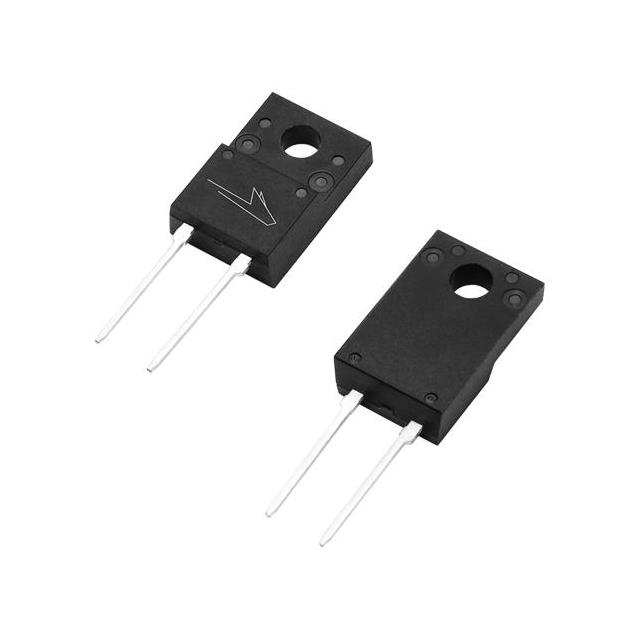

C3D06060F
DIODE SIC 600V 11.5A TO220-F2

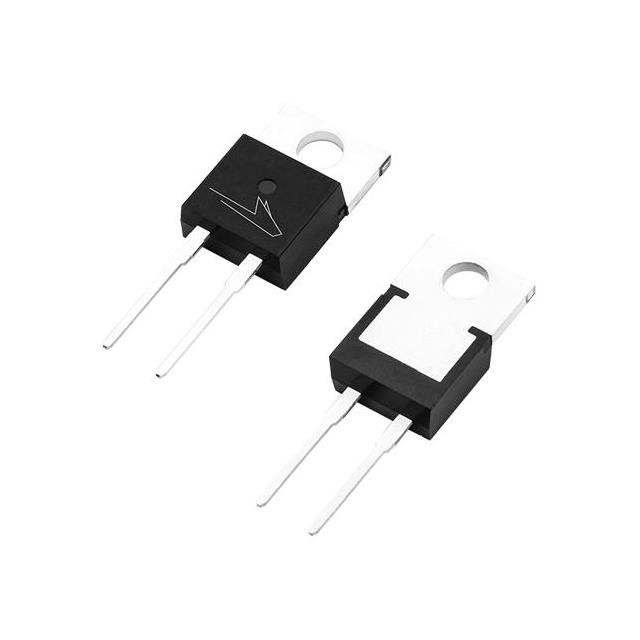

C3D06060A
DIODE SIL CARB 600V 19A TO220-2

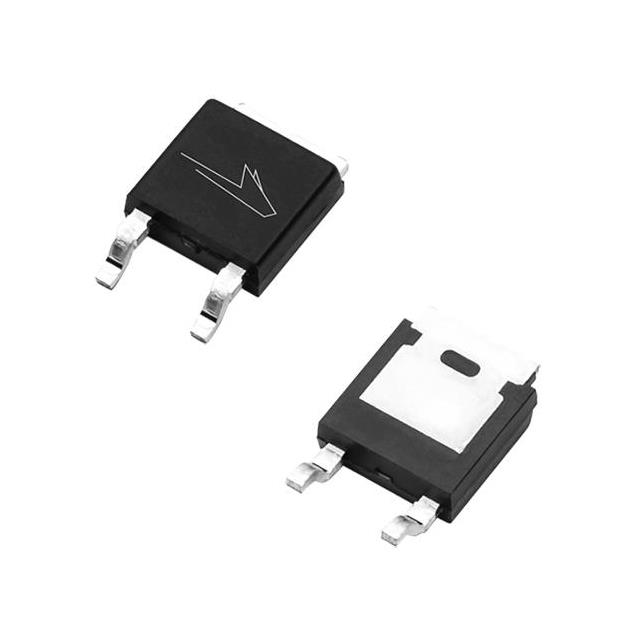

C3D04060E
