C3D1P7060Q
DIODE SIL CARB 600V 9.7A 10QFNManufacturer: Wolfspeed, Inc.
Categories: Single Diodes
Quality Control: Learn More

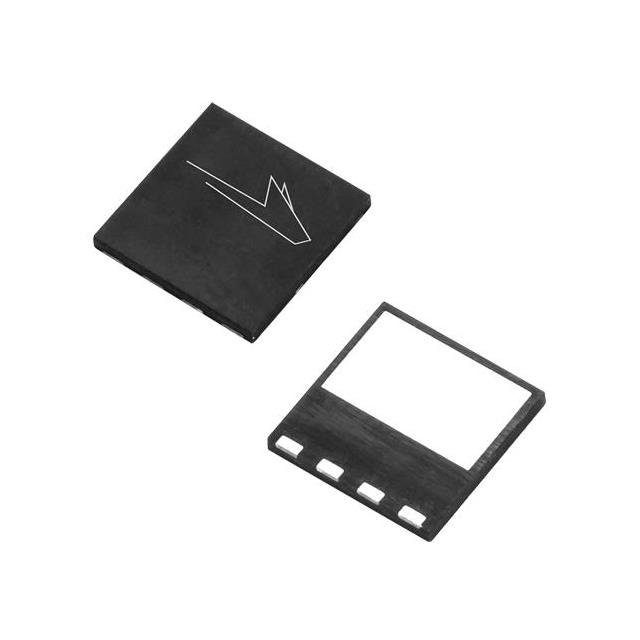

Diode 600 V 9.7A Surface Mount 10-Power QFN (3.3x3.3)
Additional Information
Series: Z-Rec®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-PowerTQFN |
| Mounting Type | Surface Mount |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 100pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 9.7A |
| Supplier Device Package | 10-Power QFN (3.3x3.3) |
| Operating Temperature - Junction | -55°C ~ 160°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V @ 1.7 A |
| Current - Reverse Leakage @ Vr | 50 µA @ 600 V |
| Qualification | - |
